How Does a Door Frame Metal Detector (DFMD) Work?

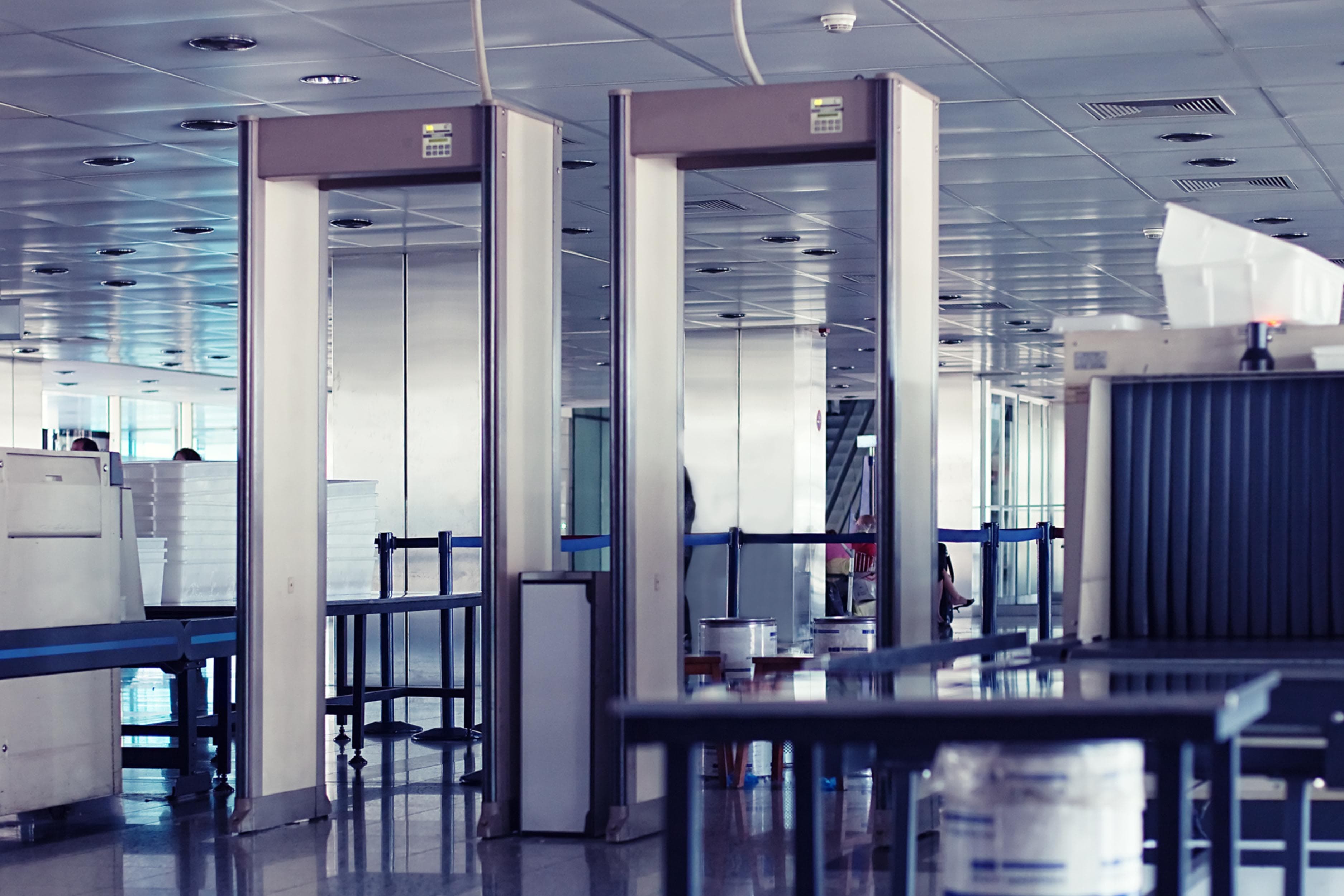

What Is a Door Frame Metal Detector?

Featured-snippet definition, A door frame metal detector (DFMD) is a walk-through archway that detects metal carried on or by a person. Transmit coils in one panel generate an alternating electromagnetic field across the opening. When metal passes through, that field induces eddy currents in the conductive object, and those currents produce a small secondary field of their own. Receive coils sense the disturbance, and the control unit raises an audible and visual alarm indicating which vertical zone of the body the metal was detected in.

If you spend a week moving around the UAE you walk through several of these without thinking about it: the entrance to a mall, the lobby of a hotel, a government service centre, the staff door of a tower in Business Bay, an exhibition hall. A DFMD (also called a walk-through metal detector or an archway metal detector) is the device deciding, each time, whether anything on you is worth a second look.

It is worth being precise about what the machine does, because specifications are routinely written as though it did something else. A DFMD detects metal. It does not detect weapons, and it cannot identify an object. It reports that a conductive metallic mass of a certain size passed through, and roughly where on the body it sat. What that means is the operator's judgement. The archway is one stage of a screening procedure and never a device left to work alone, which, in a market where the people being screened are frequently paying guests, shapes the whole design of the entrance.

How Does a Door Frame Metal Detector Work?

A DFMD works by generating an alternating electromagnetic field across the archway from transmit coils in one panel. When a person carrying metal walks through, the changing field induces circulating eddy currents inside the conductive object. Those eddy currents produce their own opposing secondary field. Receive coils in the opposite panel detect that secondary field as a departure from the expected signal. The control unit analyses the strength of the departure and which coil pairs registered it, then alarms if the signal crosses the configured sensitivity threshold, lighting the zone indicator for that height on the body.

Generate, induce, detect, analyse, alarm. The sequence completes in the fraction of a second the person takes to walk through, and it is the same in a Fujairah hotel as in a Dubai airport terminal. What differs between sites is how the lane around the archway is designed, how the alarms are resolved, and what the authority having jurisdiction expects of the installation.

The Detection Principle: Electromagnetic Induction

How the transmit and receive coils interact

Inside the two vertical panels of the archway are coils of wire. One panel carries transmit coils driven with an alternating current, producing a magnetic field that fills the opening. The opposite panel carries receive coils positioned to sense that field.

With nothing in the archway, the receive coils see a stable, known signal, and the control electronics hold it as the baseline. Detection is therefore not the measurement of a field, it is the measurement of a departure from an expected field. That baseline is established against the surroundings the unit stands in, which is why two identical units in two different lobbies do not behave identically and why moving one requires recalibration.

Why metal disturbs the field

When a conductive object enters a changing magnetic field, that field induces circulating currents inside it. These are eddy currents: a changing magnetic field induces a voltage in any conductor, and in a solid object that voltage drives current in closed loops.

Those eddy currents generate their own magnetic field, oriented to oppose the change that created them. The receive coils see the sum of the original field and this secondary field, and the control unit measures the perturbation. Its size depends on the object's conductivity, its size and shape, its orientation as it passes, and its distance from the coils, which is why the same item can give a slightly different response on two passes through the same archway.

Ferrous and non-ferrous response

Two distinct effects let a detector respond to different metals:

Ferrous metals: iron and steel are ferromagnetic. They concentrate and distort the magnetic field as well as supporting eddy currents, so they generally produce a strong response.
Non-ferrous metals: aluminium, copper, brass and stainless steel are not ferromagnetic but conduct well, so they support eddy currents and are detected through that effect.

Because the two produce differently characterised signals, the control unit's processing can distinguish between them to a degree. That is the basis of discrimination, and it is what allows a unit to be set to react to a weapon-sized ferrous mass while passing a small non-ferrous personal item.

Main Components of a DFMD

Component	Function
Transmit panel	One side column containing the transmit coils that generate the electromagnetic field across the opening.
Receive panel	The opposite column containing receive coils that sense disturbance in that field. In multi-zone units, coil pairs are stacked vertically along the panel height.
Control unit	The processing head, usually on the crossbar. Drives the transmitters, digitises receiver signals, runs the detection algorithm, applies sensitivity settings and triggers alarms.
Zone indicator bar	A vertical LED bar on one or both panels showing which detection zone alarmed, so the officer knows where on the body to check.
Audio-visual alarm	Tone and lamp indicating a detection. Adjustable volume and tone matter more than they sound in a hotel lobby, where a loud alarm is a guest-facing event.
Counters	Traffic count and alarm count. Together they give the alarm rate, which is the number that tells an operations team whether the lane is working.
Control panel or remote	Interface for selecting sensitivity programs, adjusting zone-wise sensitivity and setting parameters. Normally password-protected, and it should stay that way.
Power supply	Mains input with conditioning. Battery backup is available on many units so screening continues through a supply interruption.
Frame and side panels	The physical archway. In public-facing locations the finish is part of the entrance design, and in semi-open or coastal positions the sealing and coating system become functional rather than cosmetic.

How Does a DFMD Work Step by Step?

Step	What happens	How it works
1	System establishes its baseline	On power-up and continuously thereafter, the control unit measures the received signal with the archway empty and treats it as the reference state.
2	Field is generated across the opening	Transmit coils are driven with alternating current, producing an electromagnetic field filling the archway.
3	Person walks through	Screening is designed for normal walking pace. Stopping inside the archway, or walking through unusually slowly, changes the response.
4	Eddy currents are induced in any metal	The changing field induces circulating currents within conductive objects carried on the body.
5	A secondary field is produced	Those eddy currents generate their own magnetic field, opposing the original.
6	Receive coils register the disturbance	The received signal departs from the baseline. Each coil pair along the panel height reports independently.
7	Signal is processed and characterised	The control unit filters noise, measures amplitude and signal shape, and assesses whether the response indicates ferrous or non-ferrous material.
8	Threshold comparison	The processed signal is compared against the threshold for the active sensitivity program. Below it, nothing happens; above it, an alarm is raised.
9	Zone is identified	The control unit determines which coil pairs responded most strongly and lights the corresponding LEDs, indicating the approximate height of the metal on the body.
10	Alarm is presented to the operator	Audible tone and visual indication. Many units vary the tone or show an intensity reading to suggest the size of the detected mass.
11	Counters update	Traffic and alarm counts increment, building the data used to monitor throughput and alarm rate.
12	Secondary screening if required	On alarm, the officer conducts a targeted check, commonly with a handheld detector guided to the indicated zone.

What Are Detection Zones in a Metal Detector?

This is the specification most often misread in tender documents, so it is worth setting out properly.

A detection zone is an independently monitored horizontal band of the archway's height. Each zone has its own transmit and receive coil pairing and its own signal processing. A 6-zone detector divides the person's height into six bands; an 18-zone into eighteen; a 33-zone into thirty-three.

Two things follow, and only the first is obvious:

Localisation improves with zone count. More zones means the alarm indicates the position of the metal more precisely. On a 6-zone unit an alarm might tell the officer "somewhere around the torso". On a 33-zone unit it narrows to a tight band, so the secondary check is faster and more targeted, and, in a guest-facing setting, considerably less intrusive.
Zone-wise sensitivity becomes possible. Each zone can be tuned independently, and in practice this matters more than localisation. The ankle zone can be set less sensitively to reduce alarms from steel toe-caps and shoe shanks while the torso and waist zones stay at full sensitivity. Uniform sensitivity across the whole height is what produces high nuisance alarm rates.

Zone count	Localisation	Application context typically suited to it
Single zone	Presence only, no indication of where	Basic entry screening where any alarm triggers a full manual check
6 to 12 zones	Broad body regions	Offices, labour accommodation gates, commercial premises with moderate footfall
18 zones	Reasonably specific band on the body	Malls, hotels, exhibition venues and larger commercial buildings
33 zones	Narrow, precise band	Airports, government facilities, courts and high-security entrances
60 zones	Very fine localisation, with left and right differentiated on some models	Critical infrastructure and installations with the most demanding screening requirements

Higher zone counts are not automatically the right answer. The decision should follow from the threat profile, the throughput requirement and how much secondary screening capacity exists at that entrance. A hotel that staffs one officer on the door gains less from 33 zones than a mall running a dedicated secondary check position beside each lane. That is a staffing question as much as an equipment question, and it should be settled before the zone count is written into a specification.

Sensitivity, Discrimination and Nuisance Alarms

Every walk-through detector operates on a trade-off that cannot be removed, only managed.

Raise sensitivity and the detector responds to smaller metallic masses, improving the chance of catching a small threat item, but it also alarms on keys, coins, belt buckles, watches, phones, underwired garments and shoe shanks. Each of those alarms consumes officer attention and slows the lane. Lower sensitivity and the nuisance alarms fall away, but so does the response to genuinely small items.

Detectors manage this in three ways:

Sensitivity programs: preset configurations for different operating contexts, selected as required rather than retuned each time. A venue running a public event and the same venue on an ordinary weekday are not the same screening problem.
Zone-wise sensitivity: different thresholds by body region. The single most effective tool for reducing nuisance alarms without weakening overall detection.
Discrimination: using the differing signal characteristics of ferrous and non-ferrous material to respond selectively.

Most sites also run a divestment procedure, asking people to place phones, keys and belts in a tray before walking through. This raises effective screening quality more than any settings change, because it removes the commonest alarm sources from the problem entirely, and in this market the design of that procedure is a guest-experience decision as much as a security one. It gets its own section below.

The correct configuration depends on the site's threat assessment, its throughput requirement and its secondary screening capacity. It is a security decision, and it should be reviewed periodically rather than set once at commissioning.

The Regulatory Context for Screening Systems in the UAE

This is the part of screening specification that differs most from other markets, and it should be understood before equipment is chosen rather than after. Nothing in this section is a statement of current rules. Requirements differ between emirates, differ again inside free zones, and change over time. They must be confirmed per project with the relevant authority.

SIRA and the Dubai security regulatory framework

Security systems in Dubai, and the companies that supply and install them, operate within the regulatory framework of SIRA, the Security Industry Regulatory Agency. The practical consequence for a project team is direct: equipment selection and installer engagement in Dubai are a regulated matter rather than purely a commercial choice. A screening archway at a public entrance is part of a site's security provision, and it does not sit outside that framework because it is a piece of hardware in a doorway.

What this means in planning terms is straightforward. Establish early, with the relevant authority, what applies to your site and your system type: which elements of the installation fall within scope, what is expected of the company carrying out the work, and what documentation the project must produce. Doing that at design stage is considerably less disruptive than discovering a requirement at handover. No supplier (including TimeWatch) should be understood as conferring regulatory status on a project, and no product should be described as approved or certified unless the issuing authority has said so in writing for that specific case.

Civil defence, egress and the screening lane

Life-safety aspects of an installation fall under civil defence authority, Dubai Civil Defence within that emirate, and the equivalent authorities elsewhere in the country. For a screening lane the central questions are about movement rather than detection: whether the lane sits on an escape route, whether queue barriers or divestment tables obstruct an exit, and how the checkpoint behaves during an evacuation, when a crowd needs to leave quickly in the direction opposite to normal flow.

Where the archway is paired with turnstiles or entrance control, the behaviour of those devices on fire alarm becomes a life-safety interface in its own right, and it should be designed as an interface between two systems rather than bolted on at the end. As with everything in this section, confirm current expectations for your site with the authority having jurisdiction.

Abu Dhabi, the northern emirates and free zones

Abu Dhabi operates its own framework administered by its own bodies, and it is not safe to assume a package prepared for a Dubai project transfers unchanged to a site in Mussafah or on the islands. The northern emirates (Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah) each have their own municipal and civil defence arrangements, and an operator working across several emirates should expect to confirm requirements separately for each.

Free zones add a further layer. Zones such as Jebel Ali and Dubai South commonly apply their own site rules, permitting processes and contractor registration requirements on top of emirate-level regulation, and those are the rules that actually govern what happens at the plot boundary. For a logistics or aviation operator the sequence that works is: establish the zone authority's requirements first, then the emirate-level requirements, then specify the equipment.

In short, screening installations in the UAE sit inside a regulatory framework that varies by emirate and by free zone and that changes over time. Treat SIRA, civil defence and the relevant zone authority as stakeholders in the design from the first drawing, confirm current requirements directly with them for your specific site, and do not rely on any product description (on this page or anywhere else) as evidence of approval or certification.

Screening Guests Without Spoiling the Visit

In most markets, walk-through screening is discussed purely as a security measure. In the UAE a large share of installations stand at entrances where the people being screened are guests, shoppers, hotel residents or exhibition visitors, and where the entrance is part of the property's presentation. That does not make the screening softer; it makes the procedure design carry real weight, because a lane that generates constant alarms and intrusive searches fails as hospitality and, soon afterwards, fails as security too, officers stop treating alarms as meaningful.

Designing the divestment procedure

Divestment is the single highest-leverage intervention available at a guest-facing entrance, and it is usually designed badly or not at all. The points that matter:

Decide what is actually asked for, and keep the list short. Phones, keys, belts and bags cover the large majority of nuisance alarms. Asking for more than people can handle in a few seconds slows the lane and produces lost property.
Make the instruction visual. Visitors to a UAE venue arrive speaking many different languages. A clear pictogram at the tray position outperforms a sign in two languages and a verbal instruction nobody hears over the concourse.
Put the tray far enough before the archway that a person can divest without stopping the queue behind them, and provide a collection position after it so people are not reaching back across the lane.
Give a route back. People who have divested watches and phones need somewhere to re-dress that is not the archway exit, or the lane blocks every few guests.
Keep the procedure constant. A procedure that changes by shift teaches regular visitors nothing, and regular visitors who know the drill are the fastest people in the queue.

Lane layout, queue behaviour and the alarm that blocks everything

The commonest lane design failure is providing space for the archway and no space for what happens after it. An alarm requires an officer, a handheld detector and a metre of floor out of the traffic flow. Without that, every alarm halts the whole lane, and at a mall entrance on a weekend evening that is enough to push the queue back into the car park.

Two further points apply particularly to this market. Entrances are frequently glazed and air-conditioned with large automatic doors, so the archway often stands in a zone of moving air, direct sun and heavy door traffic, all of which affect where it can go. And where several lanes run side by side, transmitter synchronisation is a requirement rather than an option, because two archways within interference distance of each other will produce alarms that belong to neither.

Treating the nuisance alarm rate as a service measure

Most venues record the alarm rate and nobody looks at it. It is one of the more useful operational numbers available, because it moves for reasons worth knowing: a rising rate against steady traffic usually means the environment has changed, a setting has drifted, or the divestment procedure has quietly stopped being enforced.

Reviewing it monthly alongside the traffic count turns screening from an assumption into something measurable, and it catches the failure mode that matters most in a hospitality setting, an officer under queue pressure reducing sensitivity to stop the alarms, leaving an entrance that looks screened and is not. Where the rate is genuinely too high for the setting, the answer is zone-wise tuning and divestment design, not a global sensitivity reduction.

How UAE Conditions Affect a Walk-Through Detector

A detector is electronics in a sealed column, so it is affected by local conditions differently from a mechanical device, there are no bearings to abrade, but there are boards, connectors and cable entries.

Heat and solar gain. Summer ambient above 45 °C is a normal design condition here, and an archway standing inside a glazed entrance in direct sun sits hotter still. There is no motor duty cycle to derate, but the electronics have a rated operating range, and the control head's position relative to glazing and sunlight is worth deciding at design stage rather than discovering in July.
Humidity and salt-laden air. Most UAE development sits close to the Gulf coast, so salt corrosion is close to a universal design condition rather than a special case. For an archway that means frame finish, fasteners, cable glands and the base of each column, and particular attention at semi-open entrances, hotel porte-cochères and service doors that are washed down.
Condensation. A unit standing between a conditioned interior and humid outside air sees large daily swings. Where a column cools below the dew point, moisture collects inside it, and the resulting faults are intermittent and easily misdiagnosed as sensitivity problems.
Fine dust after shamal events. Dust settling after a significant blow is a recognised maintenance trigger across the region. For a detector it loads panel vents and access covers, settles on boards and connectors, and in humid air draws moisture that can become conductive across tracks. A post-event inspection across an estate, outside the normal schedule, prevents a run of nuisance faults in the following weeks.
Building structure. Towers and malls here are built heavily in steel and reinforced concrete. Rebar beneath the unit, structural columns beside it, a lift lobby behind the wall and roller shutters at a service entrance all influence the field. Static metal can be calibrated out; moving metal cannot, and a shutter that opens beside an archway will cause alarms no setting will fix.

The practical consequences are a site survey before the position is fixed, calibration in the final position, ingress protection matched to the entrance type rather than to an air-conditioned lobby, and a firm rule that any relocation is treated as a commissioning event rather than a transport event.

Technologies Used in a DFMD

Electromagnetic induction: the core detection principle, sensing eddy currents induced in conductive material.
Continuous wave or pulse induction transmission: different drive schemes with different characteristics; the choice affects noise immunity and discrimination behaviour.
Multi-coil zone architecture: vertically stacked transmit and receive coil pairs, each independently processed.
Digital signal processing: filtering environmental noise, characterising signal shape and separating genuine detections from interference.
Adaptive baseline tracking: continuous recalibration so slow environmental drift does not accumulate into false alarms. Useful where daily temperature and humidity swings are large.
Transmitter synchronisation: allowing adjacent units to operate close together without interfering, which is what makes multi-lane screening at a mall or exhibition entrance workable.
Networked monitoring: on some models, remote configuration and alarm logging over a network interface, which also makes a settings audit possible across an estate without visiting every lane.

Where Door Frame Metal Detectors Are Used in the UAE

Malls and large mixed-use developments: entrance screening at high-footfall retail where the lane must process a weekend evening crowd and still feel like a shopping centre door.
Hotels and resorts: lobby and function-room entrances, event screening and back-of-house staff doors, each with a different tolerance for delay and a different expectation of discretion.
Office and residential towers: lobby screening in Business Bay, Dubai Marina and comparable districts, usually combined with turnstiles and visitor management so screening and access decisions happen at one point.
Airports and aviation estates: passenger and staff screening alongside X-ray baggage inspection at Dubai International, Al Maktoum International and Zayed International, as part of a layered checkpoint.
Government and municipal facilities: service centres and administrative buildings where everyone entering is screened and the alarm rate is high because members of the public do not divest voluntarily.
Exhibition, conference and event venues: temporary multi-lane screening with a hard throughput constraint and a fixed door time, usually using units that are moved in and out between events and therefore recalibrated each time.
Free zones, ports and logistics: personnel screening at controlled gates around Jebel Ali and JAFZA, Dubai South, and Khalifa Port and KIZAD, often in reverse to deter removal of goods or tooling.
Industrial estates and workshops: the warehouse and workshop districts such as Al Quoz and Mussafah, where reverse screening at shift change is a common configuration and the design constraint is the alarm rate when everyone leaves at once.
Labour accommodation and construction sites: controlled entry points where screening and workforce movement recording happen together.
Universities, schools and hospitals: campus and public entrances with sharply peaked arrival patterns, and emergency department entrances where screening must never obstruct a clinical route.

TimeWatch supplies, installs and services door frame metal detectors and associated inspection and screening equipment for sites across the United Arab Emirates, from Dubai and Abu Dhabi through Sharjah and Ajman to Ras Al Khaimah, Fujairah and Umm Al Quwain.

Integration With Other Systems

X-ray baggage scanners: the person walks through the archway while their bags pass through the scanner alongside, covering both carried items and items on the body.
Handheld metal detectors: the standard secondary screening tool, used to resolve an archway alarm at the indicated zone.
Turnstiles and entrance control: physically preventing progress until screening is complete, with fire alarm behaviour designed as described in the regulatory section.
Access control: combining credential verification with screening at one checkpoint, common in towers and free-zone offices.
Visitor management: registering the visitor and recording that screening took place as part of the entry record.
CCTV and video analytics: cameras covering the lane so an alarm event can be reviewed from its log entry, which also protects officers against disputed searches.
Central monitoring: alarm and throughput data collected across lanes and sites, which is what turns the alarm rate into an estate-level service measure rather than a number on one panel.

Installation Considerations

Distance from large metal masses: steel shutters, lift shafts, structural columns and metal doors affect the field. Moving metal is worse than static metal, because static metal can be calibrated out.
Reinforced concrete floors: rebar beneath the unit influences the field, so calibration happens in the final position and is repeated after any move.
Spacing between adjacent units: archways too close together will interfere. Multi-lane installations must be spaced per the manufacturer's guidance or synchronised so transmitters do not conflict. Confirm synchronisation capability before the lane layout is fixed.
Electrical interference: variable-frequency drives, lift motors, lighting ballasts and poor-quality supply inject noise. A stable, well-earthed supply and surge protection on long runs materially affect reliability.
Level floor and rigid mounting: panels must remain parallel and stable; flexing panels produce erratic behaviour that is easily misread as a sensitivity fault.
Automatic doors and air curtains: an archway positioned in the swing of a large automatic entrance door, or directly under an air curtain, sits in a zone of moving air, moving metal and heavy traffic. Position it clear of both.
Queue and divestment layout: tray space before the archway and secondary screening space after it, as set out in the guest-experience section. This is the most common lane-design failure in the market.
Corrosion and ingress specification: frame finish, fasteners, glands and sealing agreed at design stage against the entrance type and distance from the coast, not chosen on site.
Authority coordination: permitting, approvals and any required documentation for the emirate and, where applicable, the free zone, confirmed before equipment is ordered.
Commissioning in realistic conditions: verify behaviour with the lifts, shutters and lighting that will actually be running, during the busy part of the day rather than in an empty lobby at dawn.

Maintenance and Operational Testing

Unlike most equipment, a metal detector can fail in a way that is invisible: it keeps running, passes everyone, and alarms on nothing. Routine operational testing is what catches that.

Operational test piece checks: pass a standard test object through the archway at the start of each shift, at several heights, and confirm the unit alarms in the correct zone. The single most important task on this page, and it takes under a minute.
Zone-by-zone verification: confirm every zone responds, not only the middle ones. A dead coil pair is otherwise undetectable in normal use.
Settings audit: verify sensitivity settings have not been altered informally. Sensitivity quietly reduced during a busy evening to stop nuisance alarms is a common and serious failure mode.
Alarm rate review: compare alarm count against traffic count monthly. A rising rate signals environmental change, settings drift or a divestment procedure that has stopped being enforced.
Panel alignment and mounting: check panels remain parallel and fixings tight, particularly on units moved between events.
Open the columns and inspect: terminations, connectors, glands and gaskets for corrosion, discoloration or moisture ingress. On a coastal site this is the single most useful preventive check.
Post-dust-event inspection: an additional check after any significant shamal or dust event, outside the normal schedule.
Battery backup testing: confirm the unit continues through a supply interruption where that is the expectation.
Recalibration after any move: treat relocation as a commissioning event, which matters on venue estates where units are moved between halls.

Benefits and Limitations

Benefits

Screens people at walking pace, so throughput stays high at busy entrances.
Non-contact, no physical search unless the unit alarms, which matters where the people being screened are guests.
Zone indication directs the secondary check to the right part of the body, shortening every interaction and making it less intrusive.
Consistent, applies the same threshold to every person, without fatigue or judgement variation.
Visible deterrent at the entrance, independent of what it detects.
Traffic and alarm counters give measurable operational data that an operations team can actually act on.

Limitations and considerations

It detects metal, not threats. Non-metallic weapons (ceramic and composite blades, and most explosive material) will not be detected. Sites with that threat profile need X-ray screening, body scanners or trace detection in addition.
It cannot identify objects. The unit reports a metallic mass and its approximate location; everything beyond that is officer judgement.
Nuisance alarms are inherent to any usable sensitivity setting and are managed through divestment design and zone tuning rather than eliminated.
Environment affects performance: nearby moving metal, electrical noise and adjacent units all matter, and relocation requires recalibration.
Effectiveness depends on procedure. A detector with no secondary screening behind it, or with sensitivity quietly turned down, provides the appearance of screening rather than screening.
Corrosion and condensation act quietly. Humid, salt-bearing air produces intermittent electrical faults long before anything looks wrong from outside, so inspection has to be deliberate rather than visual.
Regulatory requirements are not uniform. What satisfies one emirate or free zone may not transfer to another, and requirements change, so each project needs its own confirmation.
Specifications vary by model. Zone count, discrimination capability, sensitivity programs, synchronisation and ingress protection differ between units and should be confirmed against the datasheet for the equipment being specified.

DFMD vs Handheld Detector vs Body Scanner

	DFMD (walk-through)	Handheld detector	Body scanner
Detects	Metal only	Metal only	Metallic and non-metallic items concealed on the body, depending on technology
Screening speed	Walking pace, high throughput	Slow, manual sweep per person	Slower than an archway; the person stands still
Localisation	By zone, depending on zone count	Precise, operator-guided	Precise, with image or indicator display
Typical role	Primary screening of everyone	Secondary screening after an alarm	Enhanced or selective screening where the threat profile requires it
Guest-facing impression	Passive and quick; most people are not stopped	Personal and visible; procedure and officer manner matter	Requires explanation and a privacy-aware procedure

These are complementary layers rather than competing options. A well-designed checkpoint uses an archway for primary screening of everyone, handhelds to resolve alarms, X-ray for carried bags, and body scanners where the threat assessment justifies them.

Are Door Frame Metal Detectors Safe?

Walk-through metal detectors operate using low-intensity electromagnetic fields. They do not use X-rays or any ionising radiation, a distinction that separates them from X-ray baggage scanners, which screen bags rather than people, and from certain body scanner technologies.

The general guidance published by detector manufacturers is that walk-through units are safe for the public, including pregnant women. People with implanted medical devices such as pacemakers or implantable defibrillators are commonly advised to inform screening staff so that an alternative screening method can be used, and anyone with a specific medical concern should follow their doctor's advice and the guidance supplied with their device. Any venue screening the public should hold a written position for its own screening policy, drawn from the manufacturer's documentation for the specific equipment installed and from the relevant authority, rather than from a general description such as this one, and front-line officers should know what that position is before a guest asks them.

Frequently Asked Questions

How does a walk-through metal detector work?

It generates an alternating electromagnetic field across the archway using transmit coils. When metal passes through, the changing field induces circulating eddy currents inside the conductive object, and those currents produce a secondary magnetic field. Receive coils in the opposite panel sense this disturbance as a departure from the established baseline, and the control unit raises an alarm if it crosses the configured sensitivity threshold, indicating which zone of the body responded.

What does 18-zone or 33-zone mean on a door frame metal detector?

A zone is an independently monitored horizontal band of the archway's height, each with its own coil pairing and its own signal processing. An 18-zone detector divides the body height into eighteen such bands and a 33-zone into thirty-three. More zones means the alarm indicates the position of the metal more precisely, and (often more useful in practice) each zone's sensitivity can be tuned separately, so the ankle region can be relaxed to reduce alarms from footwear while the torso stays fully sensitive.

Is a higher zone count always the right choice?

Not automatically. Higher zone counts give finer localisation and more tuning control, which suits high-footfall and high-security entrances. The benefit is only realised if the site has the secondary screening capacity to act on precise localisation. An entrance staffed by one officer who conducts a full manual check on every alarm gains less from 33 zones than a lane with a dedicated secondary check position beside it. Zone count should follow from the threat profile, the throughput requirement and the operating procedure.

Can a door frame metal detector detect a mobile phone?

Yes, at normal operating sensitivity. A phone contains enough conductive material to produce a clear response. That is precisely why most screening points ask people to place phones in a tray before walking through, removing the commonest alarm sources keeps the lane moving and stops officers becoming desensitised to routine alarms.

Why does a metal detector alarm on belts, watches and shoes?

Because it detects conductive metal mass, not weapons specifically. Belt buckles, watches, keys, coins, underwired garments and steel shoe shanks all present enough metal to cross the alarm threshold at usable sensitivity settings. Sites manage this with a divestment procedure and by relaxing sensitivity in the zones covering feet and ankles, rather than by lowering sensitivity across the whole archway.

Can a door frame metal detector detect non-metallic weapons?

No. A DFMD works by detecting conductive metal, so ceramic or composite blades and most explosive materials will not be detected. Where that threat profile applies, walk-through screening must be supplemented with X-ray baggage screening, body scanners or trace detection equipment, and the archway should be understood as one layer of a checkpoint rather than as the checkpoint itself.

Do screening systems in Dubai fall under SIRA regulation?

Security systems in Dubai, and the companies that supply and install them, operate within the regulatory framework of the Security Industry Regulatory Agency, so equipment selection and installer engagement are a regulated matter rather than purely a commercial decision. What applies to a particular screening installation depends on the site and the system type. Requirements also differ between the emirates and inside free zones, and they change over time, so a project team should confirm the current position directly with the relevant authority rather than relying on general guidance.

How do malls and hotels in the UAE screen guests without making the entrance feel hostile?

Mostly through procedure design rather than equipment settings. A short, visual divestment instruction that works across languages removes the majority of nuisance alarms before they happen. Zone-wise sensitivity relaxes the foot and ankle bands so footwear stops triggering the archway. A higher zone count narrows the secondary check to a small area, so the officer resolves an alarm in seconds rather than conducting a full search. Lane layout gives space for that check out of the traffic flow, so one alarm does not halt everybody. And the alarm rate is reviewed as a service measure, because a rising rate is the early warning that someone is about to turn the sensitivity down.

Are door frame metal detectors safe for pregnant women and people with pacemakers?

Walk-through metal detectors use low-intensity electromagnetic fields and do not emit X-rays or ionising radiation. Manufacturer guidance generally indicates they are safe for the public including pregnant women. People with pacemakers or other implanted medical devices are commonly advised to inform screening staff so an alternative method can be used, and anyone with a specific medical concern should follow their doctor's advice and the documentation supplied with their device. A venue screening the public should hold its own written position drawn from the manufacturer's documentation for the equipment installed.

Do heat, humidity and dust in the UAE affect a walk-through metal detector?

Yes, though differently from a mechanical device. There are no bearings to abrade, but the electronics have a rated operating range, and a unit standing in direct sun inside a glazed entrance sits well above shade temperature. Humid, salt-laden coastal air corrodes frames, fasteners, glands and especially terminations, producing intermittent faults long before anything looks wrong. Fine dust after a shamal event loads vents and settles on boards and connectors, where in humid air it draws moisture. Ingress protection matched to the entrance type, deliberate inspection of terminations, and an extra check after a significant dust event are the practical responses.

How do you verify a door frame metal detector is working correctly?

Pass a standard operational test piece through the archway at several heights and confirm the unit alarms and indicates the correct zone each time. This should be done at the start of each shift, and after any relocation, because a detector is calibrated against its surroundings and moving it changes them. It is the only reliable way to catch the most dangerous failure mode, a detector that appears to be running normally but has a dead zone or sensitivity that has been quietly reduced.
