How Does a Flap Barrier Gate Work?
What Is a Flap Barrier Gate?

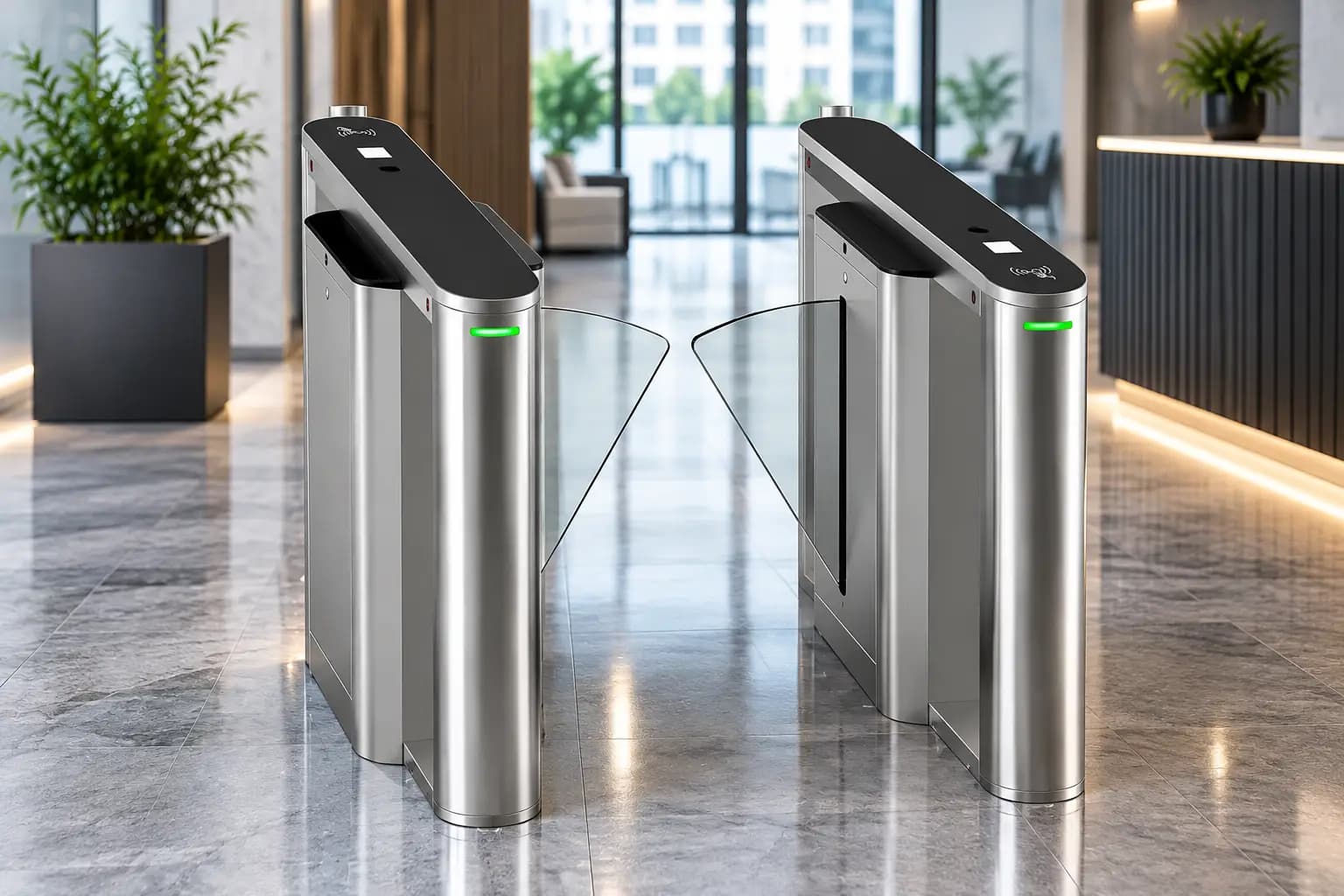

In the taller, glass-clad form that appears in tower receptions and hotel lobbies the same device is called a speed gate. It is not a different machine. The mechanism, the sensing and the operating sequence are the same; the pedestal build, the proportions and the finish are what change.
The family resemblance to the swing barrier and the tripod turnstile is real but the mechanical difference is sharp. A swing barrier rotates a solid panel about a vertical axis. A tripod rotates three arms about a hub. A flap barrier retracts its flaps sideways into the housing. That one difference sets cycle time, lane width and throughput, and therefore decides which device belongs at a given entrance.
One framing point before the detail. A flap barrier is an access management and detection device, not a physical restraint, and the flaps are light by design. What it provides is a controlled, auditable decision point: nothing passes until the system has established that it may, every passage is recorded, and anything irregular raises an alarm that somebody is expected to act on.
How Does a Flap Barrier Gate Work?
A flap barrier gate works in five stages. A person presents a credential: a card, a fingerprint, a face, a QR code on a phone. The controller validates it against the permitted list. On a valid result the drive motor retracts the flaps horizontally into the pedestal housings, clearing the lane. The infrared sensor array tracks the person through, reading direction and counting bodies. Once passage is complete the flaps extend back across the lane and the event is written to the access control log.
Present, validate, retract, track, close and log. Everything below is detail beneath those six words, including the one part of the sequence that, in this market, is not a configuration choice at all: what the flaps do when the fire alarm sounds.
Main Components of a Flap Barrier Gate
| Component | Function |
|---|---|
| Pedestal housings | Stainless steel cabinets either side of the lane carrying the drive assembly, controller, sensor array and the withdrawn flaps. Usually 304 or 316 grade; 316 is the sensible baseline across most of this market, where almost every site sits close to the coast. |
| Retractable flaps | The moving panels closing the lane. Acrylic or polycarbonate in most models, tempered glass in some speed gates. They withdraw into slots in the pedestals rather than rotating open. |
| Drive motor and mechanism | A servo or brushless DC motor with a linkage, rack or belt converting rotation into horizontal flap travel. Low flap mass means low inertia, which is what allows the short cycle. |
| Controller / control board | The logic of the lane. Takes reader and sensor inputs, drives the motor, applies the anti-tailgating and direction rules, raises alarms and talks to the access control platform and the fire interface. |
| Infrared sensor array | Transmitter and receiver beam pairs at varying heights down the facing sides of both pedestals. The pattern and sequence of broken beams is what the controller reads to establish presence, direction and body count. |
| Credential reader | RFID card reader, fingerprint or palm sensor, face recognition terminal, QR scanner, or a combination. Mounted on the pedestal top or flush into its face so it disappears into the lobby detailing. |
| Direction indicators | LED arrows or cross symbols on the pedestal tops showing whether the lane is open and in which direction. |
| Alarm | Audible and visual indication on tailgating, wrong-way entry, forced passage or an unauthorised attempt, raised as a classified event in the software at the same time. |
| Fire alarm interface | A dry contact from the building fire panel that overrides all lane logic and drives the flaps to retract and hold open. On a UAE project this is a regulated life-safety interface, not an optional accessory. |
| Power supply and backup | Low-voltage DC supply inside the pedestal, with battery or UPS backup where the lane must stay under control through an interruption. |
| Manual release | A mechanism freeing the flaps so the lane can be opened by hand during a power failure or for maintenance access. |
Pedestal housings and retractable flaps
The pedestal is part of the mechanism, not a cover over it. Its internal width governs how far the flaps can withdraw and therefore the clear lane width, and its facing surface carries the sensor array, so alignment relative to the opposite pedestal is a performance requirement rather than a cosmetic one. Two pedestals set slightly out of parallel produce intermittent sensor faults that are routinely misdiagnosed as a control board problem.
In a glass speed gate the array sits behind the glass face, which is what gives the lane its clean appearance. It also means that any mark, smear or coating defect on that glass sits directly in the beam path, which is why lobby cleaning regimes and sensor reliability are more closely connected on a speed gate than on a stainless cabinet lane.
Drive motor and the retraction mechanism
Current models use a brushless DC or servo motor with encoder feedback rather than a simple geared motor. The encoder reports flap position continuously through travel, which supports precise stopping, soft start and soft stop so the flaps do not snap open, and obstruction detection by comparing expected position against actual. Cycle timing, holding force and reversal sensitivity are configurable on most controllers and differ between models.
Drive noise is a specification item in this market in a way it rarely is elsewhere. A marble-floored tower reception is acoustically live, the lanes sit directly in front of the concierge desk, and a mechanism that is merely acceptable in a plant entrance is intrusive there. It is worth asking for measured noise behaviour rather than a general assurance.
Flap materials, finish and why they are chosen
Flaps are usually acrylic or polycarbonate, and the choice rests on two engineering grounds. Mass first: a light panel has low inertia, so it can be accelerated and stopped quickly, which is the whole basis of the short cycle. Behaviour on contact second: a light panel with rounded edges yields rather than injures if it meets a person, which matters in a device closing across a route used by children, older residents and guests carrying luggage.
Polycarbonate withstands impact better; acrylic resists scratching and holds optical clarity, which decides how a lane looks after two years in a busy lobby. Some speed gates use tempered glass flaps for appearance, and because glass is heavier it changes the drive requirement, a model-level design decision rather than something to substitute on site. Edge detailing, frame finish and whether the flap is clear, frosted or tinted are all genuine specification choices in a premium reception, and they are normally settled with the interior designer rather than the security consultant.
Controller and credential reader
The controller holds the open timers, the direction rules, the response to each sensor pattern, the alarm logic, the fire interface behaviour and the link to the wider system. The reader is deliberately separate, so a lane can be re-fitted from card to face recognition, or made to accept both, without touching the barrier mechanism, the reader simply supplies a validated identity to the same controller input. In multi-tenant towers this separation matters commercially, because tenants arriving over several years often bring different credential preferences to the same lane bank.
Infrared sensor array
This is the component that makes a flap barrier more than a powered gate, and it is covered in full in the next section.
How Does a Flap Barrier Gate Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Person approaches the lane | The entry-side beams of the infrared array register someone at the mouth of the lane, and the direction indicator confirms whether the lane is open that way. |
| 2 | Credential is presented | An RFID card is tapped, a finger or palm is placed, a face is presented to the terminal, or a QR code is held to the scanner. |
| 3 | Credential is validated | The reader passes the identity to the controller or access control platform, which checks it against the permitted list together with any time zone, direction or anti-passback rule. A valid match produces an open command; an invalid one is logged as a denied attempt. |
| 4 | Drive motor retracts the flaps | The controller energises the motor, which draws both flaps horizontally into the pedestal housings, clearing the lane. This sideways withdrawal is the mechanical difference from a swing barrier, whose panels rotate about a vertical axis. |
| 5 | Open position is confirmed | The encoder or a limit position tells the controller the flaps are fully withdrawn and the motor stops. |
| 6 | Person walks through | The infrared beam pairs break and restore in sequence as the body moves down the lane. The controller reads that sequence continuously rather than sampling it. |
| 7 | Passage is analysed | From which beams broke, at what heights and in what order, the controller establishes direction, counts the bodies in the lane and decides whether this is one authorised passage or a violation. |
| 8 | Passage is confirmed complete | When the exit-side beams clear and no further body is detected, the controller treats the passage as finished. |
| 9 | Flaps extend back across the lane | The motor drives the flaps out of the pedestals until they meet at the lane centre, ready for the next credential. |
| 10 | Event is logged | The passage (identity, direction, lane, timestamp and any alarm) is written to the access control or attendance database. |
If a second person is detected in the lane without a second authorisation, or if someone enters against the configured direction, step 9 does not run normally: the controller closes the flaps and raises an alarm instead. A fire alarm signal overrides the whole sequence at any point, which is the subject of the regulatory section below.
How the Infrared Array Counts Bodies and Detects Tailgating
The array is the core of the anti-tailgating logic and the single component that most separates a capable lane from a basic one. Down the facing side of each pedestal sits a column of infrared emitters with matching receivers opposite, each pair forming a beam across the lane at a set height. Models carry anywhere from a handful of pairs to well over twenty. No single beam is clever; what the controller does with the whole pattern is.
As a person walks through, their body interrupts beams in a characteristic order (entry-side first, then middle, then exit-side) and beams at torso height stay broken longer than those at head or knee height. From that the controller derives direction of travel, body count, and anomalies such as a low break with nothing above it, which is usually a bag or a wheeled case rather than a person. On a violation the flaps close, the alarm sounds, and the event is logged with its own classification so it can be matched to camera footage afterwards.
Sensor array quality decides anti-tailgating quality. A lane with too few beam pairs, or with all of them clustered at one height, cannot resolve a second person following closely behind the first, both bodies read as one continuous interruption and nothing is flagged. In a multi-tenant tower, where the lobby is public and the lanes are the only line between the public floor and the tenant floors, beam count and height distribution deserve as much scrutiny during specification as the pedestal finish does. This is a point that rarely survives a design process led purely on appearance, and it is worth raising early.
Throughput in a Tower Lobby: What the Quoted Figure Assumes
Throughput is the reason this device exists in its current form. Figures commonly quoted for a flap barrier lane sit around 30 to 40 people per minute, but that is approximate and equipment-dependent, varying with the model, the drive, the controller timing and the lane configuration.
It also assumes something a working lobby rarely delivers. Quoted throughput figures assume people present credentials smoothly and continuously. In a tower reception at eight in the morning the constraint is almost never flap speed. It is how long each person takes to find a card in a bag, position a finger on a sensor, or stop and square up to a face terminal. A lane whose mechanism supports forty passages a minute will deliver a fraction of that if every person needs three seconds to produce a credential.
The pattern is specific in a tall multi-tenant building, because the lobby peak and the lift peak are the same event. Everyone who clears a lane immediately joins a lift queue, so an entrance sized purely on lane throughput can simply move the congestion ten metres and make it worse by concentrating it. Lane count, lift group capacity and lobby circulation depth are a single design problem, and in buildings with lift destination control the credential read at the lane often assigns the car as well, which changes where the queue forms and is worth modelling before the layout is fixed.
The practical consequence: derive lane count from arrivals observed at the real peak, treat credential presentation time as the governing variable, and remember that hands-free identification recovers more throughput than a faster mechanism ever will.
Why Speed Gates Are Specified for Appearance as Well as Flow
In most markets the lobby lane is chosen by a security consultant. In the premium towers, hotels and headquarters buildings of this market it is very often chosen jointly with the interior designer, and the appearance brief carries real weight, occasionally more than the throughput brief. That is worth stating plainly rather than treating as an inconvenience, because it changes what a good specification looks like.
A speed gate differs from a standard flap barrier in build rather than principle: taller glass pedestals instead of short stainless cabinets, a slimmer footprint so a bank of lanes consumes less of an expensive floor plate, a quieter drive because a reception where people are met and greeted cannot tolerate mechanical noise, and finish-led detailing with integrated lighting and flush readers. A standard flap barrier is built for utility (robust stainless pedestals, straightforward maintenance access, tolerance of heavier traffic) and belongs at the staff, service and back-of-house entrances behind the main reception.
The failure mode worth guarding against is a lane bank selected entirely on appearance and then found to have too few beam pairs, too narrow a lane set with no accessible lane, or a drive that cannot sustain the building's peak. Appearance and performance are not in conflict here; they simply have to be specified in the same conversation. The useful discipline is to agree beam count, lane widths, the accessible lane and the fire alarm behaviour as fixed requirements first, and to treat glass, finish and lighting as the variables.
The Regulatory Context for Entrance Control in the UAE
Of the four territory versions of this page, this is the section with the most practical consequence, because in the UAE two of the decisions described above are not the project team's to make freely.
SIRA and the Dubai security regulatory framework
Security systems and the companies that install them in Dubai operate within the framework of SIRA, the Security Industry Regulatory Agency. The practical effect for an entrance control project is that equipment selection and installer engagement in Dubai are a regulated matter rather than purely a commercial choice, and that the relationship between an entrance control system, the building's CCTV and the wider security arrangement sits inside that framework rather than outside it.
What this means for a project team is procedural: establish the current SIRA position for the specific site and system type at design stage, confirm how the entrance control lanes are treated within it, and confirm the engagement requirements that apply to whoever installs and maintains them. Nothing on this page should be read as a statement that any product is approved, certified or compliant under SIRA or any other framework: this is context, and the current requirements must be confirmed with the authority for the specific project.
Civil defence and how the flaps behave on fire alarm
This is the point that changes the engineering. On most of the world's projects, whether a lane fails open or fails closed is a configuration decision taken by the project team and recorded in the fire strategy. In the UAE, life-safety behaviour of this kind (including how barriers, gates and turnstiles behave when the fire alarm sounds) falls under civil defence authority, through Dubai Civil Defence and the equivalent authorities in other emirates.
That makes the fail-state a regulatory question rather than a preference. The design consequences are concrete and all of them land early:
- The required behaviour on alarm must be established before the lane layout is fixed, because it affects how the lane bank is counted in the building's escape route capacity and therefore how many lanes and how much width the entrance needs.
- The dry contact from the fire panel to each lane controller must be designed in, pulled and terminated during installation, not retrofitted after handover.
- The behaviour has to be demonstrated, not asserted, exercised during commissioning and re-tested at each scheduled drill, with the result recorded.
- Where a building's strategy requires containment in some areas and free egress in others, which lanes fall into which category has to be documented lane by lane rather than set globally on the controller.
A lane that retracts and holds open on alarm is described as fail-safe; one that stays closed is fail-secure. Which is required is not something to decide from this page, and it is not something to decide from the controller's default setting either.
Abu Dhabi, the northern emirates and the free zones
Requirements differ across the emirates and they change over time. Abu Dhabi operates its own framework rather than deferring to Dubai's, and Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain each have their own authorities and arrangements. Free zones add a further layer: developments at Jebel Ali and Dubai South frequently apply their own requirements on top of emirate-level rules, and an office fit-out inside a free zone may have to satisfy both the zone authority and the emirate authority for the same entrance.
The only safe working rule is that the position must be confirmed per project, for the specific emirate, the specific zone and the specific building use, at the time of design. A position that was correct on a previous project in a neighbouring emirate is not evidence of the position on this one.
How Flap Barrier Safety Systems Work
Because the flaps move across a space people occupy, protection is layered and each layer works differently.
- Presence interlock: while the array detects a body in the lane the controller is inhibited from closing. This prevents the close command rather than interrupting one.
- Obstruction detection: the controller monitors motor load or encoder feedback. A rise in load, or travel stopping short of the expected position, is read as contact and the flaps reverse. Sensitivity is configurable on most models and should be recorded once set.
- Yielding flap material: the light acrylic or polycarbonate panel is itself part of the safety design, limiting the force that can reach a person.
- Fire alarm interface: the dry contact from the fire panel overriding all lane logic, as covered above. In this market it is the layer with regulatory weight attached.
- Power failure behaviour: how the lane behaves on loss of supply has to be consistent with the behaviour required on alarm, and the two are frequently configured separately by default. Check both.
One field note worth carrying into commissioning. Obstruction sensitivity is the setting most often quietly reduced on site to stop nuisance reversals, usually after a building's cleaning regime or a glazing mark starts causing them. Reducing it suppresses a symptom and weakens the protection at the same time. Clean the array faces, confirm alignment, and leave the setting where the commissioning record says it should be.
Coastal Humidity, Salt and Dust at a UAE Entrance
Almost every development in this market sits close to the Gulf coast, which makes salt-laden humidity a near-universal design condition rather than a special case. Flap barriers mostly live inside conditioned lobbies, so the exposure is indirect, but it is not absent, and it concentrates at predictable points.
Salt is hygroscopic: it draws moisture from humid air and holds a conductive film against metal surfaces long after any visible wetting has gone. On a flap barrier that film reaches the pedestal base fixings where they meet the floor, the exposed fasteners and cut edges of the shell, the floor-box and cable terminations inside the pedestal base, and the connector pins on reader and sensor harnesses. Terminations are the failure point that matters, because a corroded pin produces an intermittent fault that presents as a sensor or reader problem and is diagnosed as one for weeks before anybody opens the base. On lanes near a frequently opened external door, a loading bay or a valet drop-off, this is a real maintenance item rather than a theoretical one.
The specification responses are 316 grade stainless for the pedestal shell rather than 304, stainless fasteners of a matching grade with attention to dissimilar-metal contact, sealed cable entries at the pedestal base, a floor detail that drains rather than letting wash-down water stand against the base, and conformal coating on control boards where the entrance is genuinely exposed. Dust is the second factor: after a shamal event, fine particulate reaches lobby entrances in quantity, settles on the sensor faces and attenuates the beams until a receiver reports a break with nobody in the lane. A post-shamal inspection of the array faces is a recognised trigger in this market and takes minutes.
Where Flap Barrier Gates Are Used in the UAE
Pedestrian entrance control here concentrates in building types where the lobby is both a security line and a presentation space.
- Corporate towers and multi-tenant office buildings: the dominant application. Lanes in Business Bay, Dubai Marina and across Abu Dhabi's commercial districts separate a public lobby from tenant floors, frequently with lift destination control behind them, and are specified jointly by the building owner and the fit-out team.
- Free zone offices and business centres: buildings at Jebel Ali, Dubai South and the northern emirates' free zones, where tenant turnover is high and the credential population changes continuously, so visitor handling and rapid credential issue matter as much as the lane itself.
- Hotels and resorts: back-of-house and staff entrances rather than guest-facing ones, with attendance captured at the lane, plus service corridors into the hotel from a shared podium. Guest circulation is deliberately left unobstructed, and where a lane does sit on a guest route the luggage trolley problem makes a wide accessible lane unavoidable.
- Multi-tower residential communities: resident access at tower lobbies and shared amenity floors, where the lane is also the point at which a resident, a guest and a delivery rider are told apart.
- Government and municipal buildings: recorded entry with staff and visitor flows separated and visitor passage tied to a formal registration process.
- Universities and schools: campus buildings where class changes produce sharper surges than any office peak, with attendance commonly recorded at the lane.
- Hospitals and clinics: separating restricted clinical zones from public circulation while keeping a permanently clear wide lane for beds, trolleys and equipment.
- Exhibition, event and transport buildings: very high short-duration throughput with QR or ticket validation at the lane and a requirement that every gate can be driven open at once.
Across all of them the lane is one stage in an entrance that also contains identification, visitor handling and recording. TimeWatch supplies flap barrier gates, speed gates and associated pedestrian entrance control equipment for projects in this region.
Integration With Other Systems
A flap barrier lane rarely operates alone. The usual integrations:
- Access control: the credential database governing doors and parking also governs the lane, so one revocation closes every route at once.
- Lift destination control: in tall towers the credential read at the lane assigns a car before the person reaches the lift lobby, which is as much a flow decision as a security one and changes where queues form.
- Time and attendance: the passage event doubles as the attendance punch, which is the usual arrangement at hotel and facility staff entrances.
- Visitor management: a pre-registered visitor receives a QR code or temporary card the lane accepts for a defined window, with arrival notified to the host. In multi-tenant towers this is normally the busiest integration on the system.
- Face recognition terminals: hands-free presentation, which addresses the actual throughput constraint rather than the mechanical one.
- CCTV and video analytics: footage bookmarked against each lane event, so a tailgating alarm can be reviewed from its log entry. Camera coverage of entrance control lanes also sits within the regulatory framework described above and should be confirmed alongside it.
- Fire alarm systems: the dry contact driving retract-and-hold, designed and tested as described in the regulatory section.
- Occupancy and muster reporting: because the array counts bodies rather than credentials, the lane supports a reasonably accurate live occupancy figure, which matters where a building has to account for everyone during an evacuation.
Installation and Lane Layout
Most flap barrier complaints trace to layout rather than equipment. The principal considerations:
- Floor flatness and pedestal alignment: the pedestals must be level and truly parallel, or opposing sensor pairs fall out of alignment and produce intermittent faults that look exactly like a board failure. On a polished stone lobby floor this is a setting-out issue to agree with the fit-out contractor, not an afterthought.
- Lane width and the accessible lane: a standard lane will not take a wheelchair, a luggage trolley, a delivery trolley or a hospital bed. In hotel and residential lobbies the trolley case alone makes a wide accessible lane unavoidable, and it must be settled at design stage because adding one later means rebuilding the bank.
- Queueing and circulation depth: approach space sized for the morning peak rather than average flow, and clear space behind the lanes so those who have passed are not held by the lift queue.
- Reader position: at a height and angle people find without being told. A badly placed reader adds a second to every passage, and a second per passage is the whole difference at peak.
- Glazing and daylight: direct sun along the beam path affects some models, and a double-height glazed lobby can deliver it at particular times of day. Check the manufacturer's guidance for lanes facing a curtain wall or an atrium.
- Distance from the external door: every metre between the entrance doors and the lane bank reduces the dust and salt-laden air reaching the array and the pedestal base.
- Cable routing and terminations: power, network and reader cabling up through the floor into the pedestal base, in conduit laid before the floor finish, with sealed entries and terminations detailed for a humid coastal environment.
- Fire interface wiring: pulled, terminated and tested during installation, with the tested behaviour recorded.
- Power supply and backup: stable supply with UPS where lane control must survive an interruption, configured so that backup behaviour and alarm behaviour agree with each other.
Maintenance Considerations
Flap barriers are electromechanical devices cycling continuously in a public space, and in a premium lobby they are also furniture that everybody looks at.
- Clean the infrared emitter and receiver faces on both pedestals. On a glass speed gate this means the glass in front of the array, and it should be coordinated with the lobby cleaning regime rather than left to it.
- Add an inspection of the array faces after a shamal or any significant dust event, whatever the schedule says.
- Inspect pedestal base fixings, floor-box entries and cable terminations for corrosion, and treat intermittent sensor or reader faults as a termination suspect before replacing a board.
- Inspect the flaps for scratches, cracks and edge damage, and confirm they still meet cleanly at the lane centre.
- Check pedestal alignment, particularly after floor work or an impact from a trolley.
- Verify the drive runs smoothly through full travel with no binding at either end, and listen for noise change in a reception where noise is noticed.
- Test obstruction reversal deliberately with a soft object at the configured sensitivity, and confirm the setting still matches the commissioning record.
- Test the fire alarm interface at every scheduled drill and record that the lanes behaved as the fire strategy and the authority's requirement demand.
- Confirm the manual release operates, before it is needed rather than during an incident.
- Review alarm logs lane by lane. A gradual rise at one lane points to a sensor, glazing or layout problem long before anyone reports a fault.
Benefits and Limitations
Benefits
- Short cycle and high lane throughput compared with rotating-arm devices, because the flaps retract rather than sweep through an arc.
- Anti-tailgating and direction detection through the infrared array, with each violation logged and alarmed as its own event type.
- A complete audit trail by identity, direction and time, usable for attendance and live occupancy reporting.
- Reader-agnostic: card, fingerprint, face or QR, interchangeable without altering the mechanism, useful where tenants arrive over several years with different preferences.
- In speed gate form, an entrance control line that works as part of a designed reception rather than against it.
Limitations and considerations
- A flap barrier controls passage; it does not physically restrain. The flaps are light by design and a determined person can force or vault them. The security value comes from the barrier, the alarm, the CCTV bookmark and a defined response procedure working together, the device alone is not the control.
- Lane width is a hard constraint. Standard lanes do not take wheelchairs, luggage trolleys, delivery trolleys or beds, so a wide accessible lane is normally required alongside.
- Anti-tailgating performance varies widely with array density and height distribution, and a lane chosen on appearance alone can arrive with too few beams to detect a close follower at all.
- Quoted throughput is not achieved throughput. Credential presentation speed, not flap speed, sets the real rate.
- Fail-state behaviour is not yours to choose freely here. It is governed by civil defence authority and must be established before layout is fixed, not configured at commissioning.
- Terminations corrode in this climate. Intermittent faults at the pedestal base are a recurring maintenance reality on coastal sites and should be designed against rather than discovered.
Exact behaviour (cycle time, sensor count, obstruction sensitivity, noise, operating temperature range, fail-state configuration and integration options) depends on the specific model, controller, firmware and site configuration, and should always be confirmed against the datasheet for the equipment actually being specified.
Flap Barrier vs Swing Barrier vs Tripod Turnstile
| Flap barrier / speed gate | Swing barrier | Tripod turnstile | |
|---|---|---|---|
| Mechanism | Flaps withdraw horizontally into the pedestals | Solid panels rotate open about a vertical axis | Three horizontal arms rotate about a hub; the user pushes through one segment |
| Cycle and throughput | Short cycle; commonly quoted around 30 to 40 people per minute per lane, equipment-dependent | Longer cycle, because the panel must sweep an arc before the lane is clear | Slowest; each person physically rotates the arms one segment at a time |
| Fit in a premium lobby | Glass speed gate variants are designed for reception halls and are usually the form chosen there | Available in glass finishes; the wider panel reads as heavier in a slim lane bank | Rarely used front-of-house; belongs at staff and service entrances |
| Luggage, trolleys and wheelchairs | Standard lanes are narrow; a wide accessible lane is normally added alongside | Wide-panel versions frequently serve as the accessible lane in a bank of gates | Not accessible; a separate gate is required |
| Typically suited to | Tower and hotel receptions, free zone offices, residential lobbies, high-peak entrances | Receptions needing a wider lane and mixed pedestrian and trolley traffic | Staff gates, labour accommodation entrances, stadium and event concourses |
The three are not better and worse versions of one another. A flap barrier is chosen for throughput and for how it reads in a lobby, a swing barrier for lane width and mixed traffic, a tripod turnstile for durability where conditions are hard. A single UAE tower commonly uses speed gates in the main reception and tripods at the service entrance behind it.
Frequently Asked Questions
How does a flap barrier gate work in an office tower lobby?
A valid credential at the reader causes the controller to drive both flaps horizontally into the pedestals, clearing the lane. An infrared array down the facing sides of the pedestals tracks the person through, confirming direction and counting bodies, and the flaps extend back across the lane once passage is complete. The passage is written to the access control log with identity, lane, direction and timestamp.
What is the difference between a flap barrier and a swing barrier?
The flap barrier withdraws its flaps sideways into the pedestals; the swing barrier rotates solid panels about a vertical axis. Retraction clears the lane faster, which is why flap barriers and speed gates dominate entrances where a crowd arrives at once. Swing barriers are available in wider lane formats that suit trolleys, luggage and wheelchair passage more comfortably.
Is a speed gate the same thing as a flap barrier?
Mechanically, yes. A speed gate uses the same retracting flaps, the same infrared array and the same operating sequence. What differs is the build: taller glass pedestals rather than short stainless cabinets, a slimmer footprint, a quieter drive and finish-led detailing with flush readers. The term describes the form and the setting, not a different working principle.
Do speed gates and flap barriers in Dubai involve SIRA?
Security systems and the companies installing them in Dubai operate within the framework of SIRA, the Security Industry Regulatory Agency, so equipment selection and installer engagement are a regulated matter rather than purely a commercial choice. Nothing here states that any product is approved or certified. The current position for the specific site and system type must be confirmed with the authority at design stage.
What should a speed gate do when the fire alarm sounds in a UAE building?
Lanes on an escape route are normally driven to retract the flaps and hold them open by a dry contact from the fire panel. In this market that behaviour falls under civil defence authority rather than being a configuration preference, so the requirement must be established before the lane layout is fixed, wired during installation and demonstrated at commissioning and at each drill. Requirements differ by emirate and must be confirmed per project.
How many people a minute can a speed gate lane actually pass?
Quoted figures sit around 30 to 40 people per minute per lane, but they assume continuous smooth credential presentation. Real lobbies are limited by how long each person takes to find a card or square up to a face reader. In a tall tower the lift queue compounds it, so lane count should come from arrivals observed at the real peak rather than from a published rate.
Does coastal humidity and salt affect flap barrier pedestals?
Yes, and the damage concentrates at terminations rather than on visible surfaces. Salt draws moisture from humid air and holds a conductive film against metal, attacking base fixings, cut edges and the connector pins inside the pedestal base. A corroded pin produces an intermittent fault that is usually blamed on a sensor or reader. Specify 316 stainless, sealed cable entries and a draining floor detail.
Can someone climb over or force a speed gate?
Yes, and the design accepts it. The flaps are deliberately light so they yield rather than injure on contact, which also means a determined person can force or vault them. The security value comes from the alarm raised, the CCTV footage bookmarked against that event and a response procedure someone actually follows. Taller glass pedestals raise the effort required but do not make the lane a restraint.
Do speed gate lanes take wheelchairs and hotel luggage trolleys?
Standard lanes do not. They are deliberately narrow, which is part of how the array resolves a single body, and they will not take a wheelchair, a luggage trolley, a delivery trolley or a bed. Entrances therefore pair standard lanes with at least one wide accessible lane. In hotel and residential lobbies the trolley case alone makes that lane mandatory, and it must be designed in from the start.
How does a flap barrier connect to building access control and lift destination control?
The lane controller links to the access control platform over TCP/IP, RS-485 or Wiegand, and the platform holds the permitted list and the time zone, direction and anti-passback rules. Where lift destination control is fitted, the same credential read at the lane assigns a car before the person reaches the lift lobby, which moves the queue and should be modelled before the entrance layout is fixed.
How often does a lobby speed gate need servicing in the UAE?
Intervals should follow passage count and exposure rather than a fixed calendar. Array face cleaning belongs on a shorter interval than the mechanical service and should be coordinated with the lobby cleaning regime, with an extra inspection after any shamal dust event. Corrosion inspection of base fixings and cable terminations belongs at every visit on coastal sites, which is most of them here.
