How Does a Swing Barrier Work?
What Is a Swing Barrier?

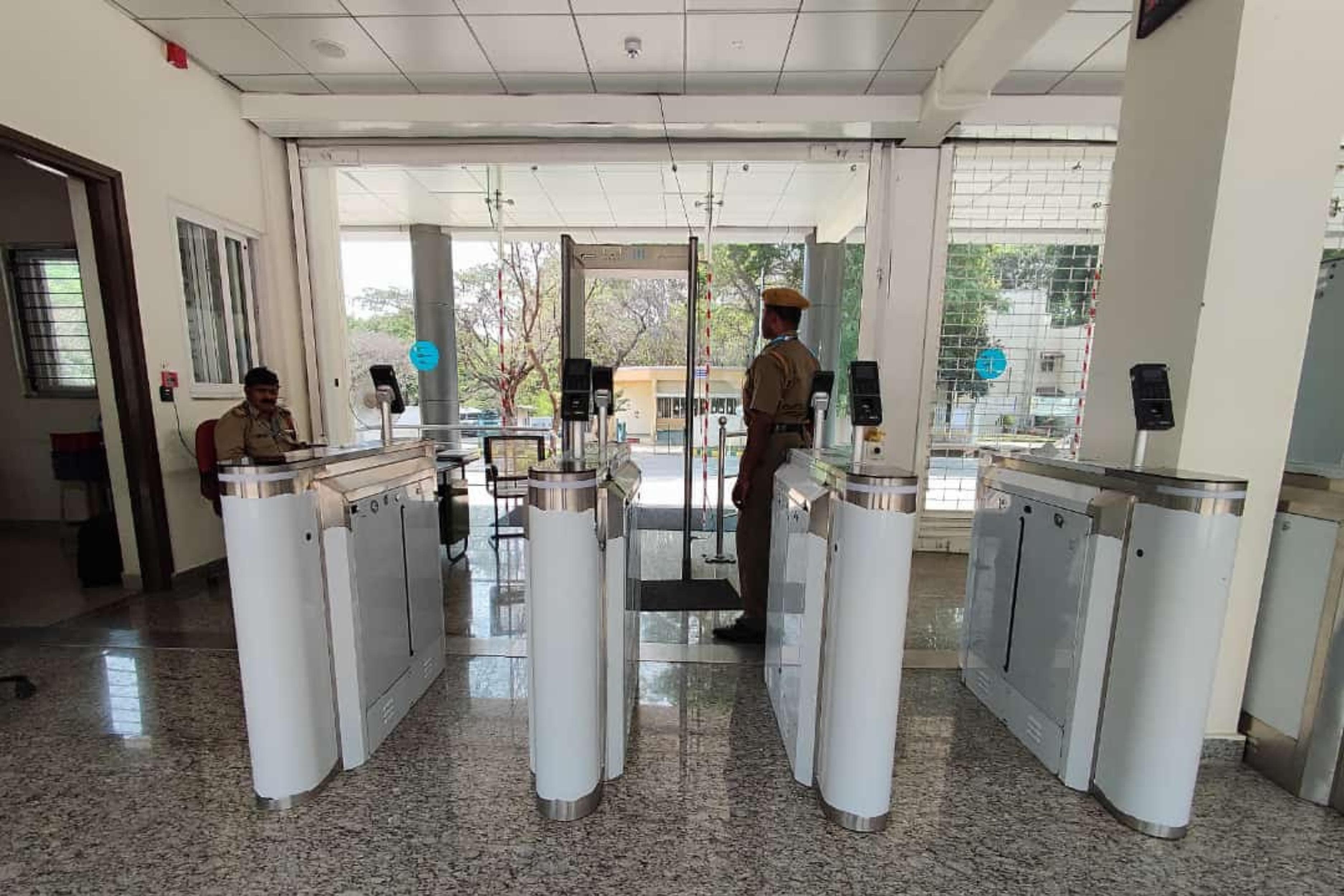

If you work in a tower anywhere in the Emirates you pass through one of these twice a day. It is the glass lane between the lift lobby and the street: the thing that opens when your card or your face is recognised, closes behind you, and quietly writes down that you arrived at 08:41. A swing barrier (also called a swing gate or swing turnstile) is the device making that decision.
It belongs to the same family as the flap barrier and the tripod turnstile, and in practice the three are installed together rather than chosen between. The difference is mechanical, and it decides which people can use which lane. On a building that is shared by tenants, visitors, deliveries and service contractors, that distinction turns out to be an operational question rather than a technical one.
It is worth being clear about what the equipment is for. A swing barrier is an identification and recording device, not a physical defence. Panels on most models are waist or chest height and can be climbed. What the lane genuinely delivers is a controlled, auditable decision point, nobody passes unidentified, and every passage is timestamped. In a multi-tenant tower or a serviced building, that record is often the reason the lane was installed in the first place.
How Does a Swing Barrier Work?
A swing barrier works in four stages. A person presents a credential at the reader built into the pedestal. The controller validates it against the permitted list. On a valid match the controller drives the motor, and the panel rotates roughly 90 degrees about its vertical axis to clear the lane. An infrared sensor array then tracks the passage, and once it confirms the person has cleared the lane the panel swings closed and the event is logged.
Present, validate, swing open, track, close. The sequence is the same in a Business Bay tower as in a hotel back-of-house corridor in Ras Al Khaimah. What changes between sites is the credential mix, how hard the local atmosphere works on the hardware, and (a point this page spends real time on) what the authority having jurisdiction expects the panels to do when the fire alarm sounds.
Main Components of a Swing Barrier
| Component | Function |
|---|---|
| Pedestal housings | Stainless steel or powder-coated enclosures standing on either side of the lane, holding the drive assembly, controller, sensor array and reader. In the UAE the grade of stainless and the quality of the base fixings deserve specific attention rather than being left to the standard offering. |
| Swing panel and panel mount | The moving element: toughened glass, acrylic or steel, fixed to a mounting boss on the drive shaft. Panel height and width define the lane geometry and the effort needed to climb or duck under it. |
| Drive motor and gearbox | Typically a brushless DC servo motor with a reduction gearbox, providing the torque that rotates the panel and the controlled deceleration that stops it cleanly at each end of travel. |
| Position feedback (encoder) | Reports shaft position continuously, so the controller always knows where the panel is and can detect an obstruction by monitoring drive load. |
| Main controller | The logic of the lane. Accepts credential and safety inputs, drives the motor, runs the passage timers and anti-tailgating logic, implements the fire alarm input, and communicates with the access control platform. |
| Infrared sensor array | Transmitter and receiver beam pairs at multiple heights along both pedestals, tracking objects and people in the lane. The subsystem that most determines how well the lane performs. |
| Credential reader | Card, face recognition, fingerprint, QR or mobile reader mounted in or on the pedestal head, facing the approach direction. |
| Direction indicator LEDs | Arrow or cross indicators on the pedestal head telling the user whether the lane is open to them and in which direction. |
| Alarm | Audible and visual annunciation for tailgating, wrong-direction entry, forced passage or a panel held open too long. |
| Manual release | A mechanism that disengages the drive so panels can be pushed open by hand during a power failure or an evacuation. |
| Power supply | Regulated low-voltage supply for the drive and electronics, commonly with battery or UPS provision where the lane must keep working through an outage. |
Pedestals and swing panel
The pedestal is not simply a cover. Its length and internal layout determine how many sensor beams can be fitted and how far apart they sit, which in turn determines how well the lane distinguishes one body from two. A slim pedestal specified for a narrow lobby footprint constrains the array before any firmware decision is made, and in towers where floor area is tightly planned that trade-off is real rather than theoretical.
Panel material is the other decision taken here, and it is mechanical as much as architectural. A toughened glass panel carries considerably more rotational inertia than an acrylic one and has to be matched to a drive rated for that mass at the site's expected cycle count. A heavy glass panel on an undersized drive runs the motor hot, wears the gearbox and makes travel progressively less crisp, and the tower lobby that chose the heaviest panel on aesthetic grounds is usually the one cycling it hardest at shift change.
Drive motor, gearbox and position feedback
Most current swing barriers use a brushless DC servo motor with a reduction gearbox. Brushless construction removes the brush wear that limits cycle life in a lane doing thousands of movements a day, and the servo arrangement gives the controller fine control over acceleration and deceleration, so the panel starts and stops smoothly rather than snatching. The encoder on the shaft closes the loop: the controller knows the panel's angle at every instant, which is what lets it halt the panel mid-travel if something is in the way, hold it open on command, and report a mechanical fault rather than simply stalling.
Obstruction detection works through that same feedback path. A rise in drive current at a point in travel where the panel should be moving freely is interpreted as contact, and the controller stops or reverses. It is a behaviour worth demonstrating at handover with a building manager present, because it is the behaviour a tenant will ask about the first time a panel catches a bag.
Controller and credential reader
The controller holds the passage timers, the direction rules for the lane, the response to each alarm condition, the fire alarm input, and the interface to the access control platform. The reader sits in the pedestal head so the user presents a card or a face without breaking stride.
Where the validation decision is actually taken (in the reader, in a local access control panel, or in server-side software) varies by system design, and it decides how the lane behaves when the network link drops. In a multi-tenant tower where the access platform may be managed by a third party rather than by the building, that question belongs in the design discussion with all parties present, not at commissioning.
Infrared sensor array
This is the subsystem that determines how good the barrier actually is, and it is covered in full in the next section.
How Does a Swing Barrier Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Person approaches the lane | The sensor array registers a body at the approach side. Direction indicators show the lane's current state. |
| 2 | Credential is presented | A card is tapped, a face is presented to the terminal, a finger is placed on the sensor, or a QR code is shown to the scanner in the pedestal head. |
| 3 | Authorisation is decided | The credential is checked against the permitted list held in the controller, access control panel or server software. A valid match produces an open command; an invalid one does not, and is logged as a denied attempt. |
| 4 | Controller signals the drive | The control board commands the servo motor. Acceleration is ramped so the panel does not snatch at the start of travel. |
| 5 | Panel swings open | The gearbox turns the panel through roughly 90 degrees about its vertical axis, clearing the lane. The encoder confirms the fully open position and the drive holds it there. |
| 6 | Person enters the lane | Beams in the entry zone break in sequence. The controller begins counting bodies and establishing direction of travel. |
| 7 | Passage is tracked | As the person moves along the lane, successive beam pairs break and restore. The pattern and order tell the controller how many bodies are present and which way they are going. |
| 8 | Passage is confirmed complete | When the exit-side beams have cleared and no body remains in the lane, the controller treats the authorised passage as finished. |
| 9 | Panel swings closed | The drive returns the panel to the closed position, decelerating into the stop. If a beam breaks during closing, the panel halts or reopens depending on configuration. |
| 10 | Event is logged | The passage (credential, direction, lane, timestamp and any alarm raised) is written to the access control or time-attendance database. |
If the array detects a second body following on one authorisation at step 7, the controller raises a tailgating alarm and, depending on configuration, closes the panel against the follower.
One practical observation about step 9 on busy UAE lobbies. The passage timer is frequently set generously during commissioning, because a forgiving lane produces fewer complaints in the first week. The consequence appears later as routine tailgating at shift change in a tower, and as an access log that no longer reconciles with the number of people in the building, which matters to whoever has to answer for occupancy. Timer settings are worth tuning against the real approach pattern rather than left at a default.
How the Sensor Array Detects Tailgating
The array is a set of infrared transmitter and receiver pairs facing each other across the lane, mounted at several heights along the length of both pedestals. Each pair forms a beam. When something interrupts a beam, the receiver stops seeing its transmitter and the controller registers that beam as broken.
On its own that is a simple presence detector. What makes it useful is the sequence. Because the beams sit at known positions along the lane and at known heights, the order in which they break and restore describes a movement. A single adult walking through breaks the beams in a smooth front-to-back progression. Two adults walking close together produce a different pattern: beams at the rear of the lane remain broken after the front beams have restored, and the controller reads that as two bodies on one authorisation. Entering from the wrong end reverses the sequence, which is how wrong-direction entry is caught.
This leads to the single most important point in specifying swing barriers: the sensor array, not the panel, determines how good the anti-tailgating is. Beam count, beam spacing and beam height decide whether the system can distinguish an adult carrying a child from two adults walking close together, a genuinely hard discrimination that needs beams low enough to see legs and enough of them along the lane to separate one gait from two. A lane fitted with too few beams will be defeated routinely, and no amount of panel quality compensates for it. When comparing equipment for a tender, the number and arrangement of beam pairs is the first specification to interrogate, ahead of finish, panel material and anything describing appearance.
How the controller responds to a detected violation varies by model and configuration: an audible alarm only, an alarm plus a message to the security desk, closing the panel against the follower, or holding the lane locked until an operator resets it. In a residential tower the response needs to suit a population that includes residents carrying shopping and children, where a lane that locks on every violation becomes a daily nuisance that the building then asks to have switched off entirely. Setting it sensibly at the outset is how the detection survives its first month.
Credentials a Swing Barrier Can Read
The lane itself is credential-agnostic; what changes is the reader fitted in the pedestal head.
- Proximity and smart cards: the established method for staff and tenant entrances, read on a tap at the pedestal.
- Face recognition: a terminal at head height on the pedestal, now common in corporate towers and free zone offices because it is contactless and quick.
- Fingerprint: still used where the population is fixed and enrolment is straightforward, though contactless methods have displaced it in many shared lobbies.
- QR and barcode: well suited to visitors, contractors and event access, since the code can be issued in advance by email or message. Widely used in free zone offices and serviced buildings where the visitor population changes daily.
- Mobile credentials: a phone acting as the card over Bluetooth or NFC, depending on the reader. Popular in hotels and serviced residences where a guest or resident app already exists.
Most buildings run more than one in parallel: tenants on card or face, visitors on a QR pass issued by the building's visitor process. Which combinations a given lane supports depends on the reader and the controller, not on the barrier mechanism, but in a multi-tenant tower the harder question is usually governance rather than technology: who issues credentials, who revokes them when a tenant's employee leaves, and who holds the record. Settle that before the hardware.
The Regulatory Context for Entrance Control in the UAE
This is the part of entrance control specification that differs most from other markets, and it is worth understanding before equipment is chosen rather than afterwards. Nothing in this section should be read as a statement of current rules. Requirements differ between emirates, differ again inside free zones, and change over time. They must be confirmed per project with the relevant authority.
SIRA and the Dubai security regulatory framework
Security systems in Dubai, and the companies that supply and install them, operate within the regulatory framework of SIRA, the Security Industry Regulatory Agency. The practical consequence for a project team is that equipment selection and installer engagement in Dubai are a regulated matter rather than purely a commercial choice. A turnstile lane that forms part of a building's security provision does not sit outside that framework simply because it looks like a piece of lobby furniture.
What this means in planning terms is straightforward. Establish early, with the relevant authority, what applies to your building and your system type: which elements of the installation fall within scope, what is expected of the company carrying out the work, and what documentation the project will need to produce. Doing that at design stage is considerably less disruptive than discovering a requirement during handover, when the lobby floor is finished and the lanes are already grouted in. No supplier (including TimeWatch) should be understood as conferring regulatory status on a project, and no product should be described as approved or certified unless the issuing authority has said so in writing for that specific case.
Civil defence and how the panels behave on fire alarm
The life-safety aspects of an installation fall under civil defence authority, Dubai Civil Defence within that emirate, and the equivalent authorities elsewhere in the country. For an entrance control lane the central question is what the panels do when the building's fire alarm activates: whether they open and hold to clear the egress route, how the alarm signal reaches the barrier controller, whether that interface is monitored, and how it is tested.
That question has a consequence this page returns to in the next section, and it is the main reason the UAE treatment of this topic differs from others. In many markets the fail-safe versus fail-secure choice is presented as a configuration preference for the security manager. Here it is governed by the authority with responsibility for life safety in that building, which makes it a regulatory determination that the design has to accommodate rather than a setting to be picked during commissioning.
Because this is a life-safety function it should be designed as an interface between two systems rather than bolted on at the end as a pair of wires. The fire alarm contractor and the entrance control installer need to agree the signal type, the fail direction, the cabling route and the test method, and that agreement needs to be documented for the authority. The interface should then be tested as part of the building's scheduled fire drills, not only at handover. As with everything in this section, confirm the current expectations for your building with the authority having jurisdiction.
Abu Dhabi, the northern emirates and free zones
Abu Dhabi operates its own framework, administered by its own bodies, and a package prepared for a Dubai tower does not transfer unchanged to a building in Mussafah or on the islands. The northern emirates (Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah) each have their own municipal and civil defence arrangements, and an operator running buildings across several emirates should expect to confirm requirements separately for each rather than standardising a specification and assuming it travels.
Free zones add a further layer. Zones such as Jebel Ali and Dubai South commonly apply their own site rules, fit-out permitting processes and contractor registration requirements on top of emirate-level regulation, and for an office fit-out inside a zone those rules are the ones that actually govern what happens at the suite door. The sequence that works is: establish the zone authority's requirements first, then the emirate-level requirements, then specify the lanes. Working in the other direction tends to produce rework on a floor that has already been handed over.
Fail-Safe vs Fail-Secure: A Regulated Decision, Not a Setting
On a fire alarm signal or a loss of power, swing barrier panels typically open and hold, clearing the egress route so the lane cannot obstruct evacuation. This is the fail-safe configuration, and it is the usual choice on any lane forming part of a designated escape route. The alternative is fail-secure: panels stay locked in the closed position on power loss, so the boundary is not opened simply by cutting the supply. Both behaviours are configurable in the controller and both are legitimate, for different routes.
The practitioner point is that this is a decision made with the fire strategy, not a setting chosen in the controller. In the UAE it is more than that: because civil defence authorities govern how panels behave on fire alarm, the determination is a regulatory one rather than a configuration preference. That changes who has to be in the room. The decision belongs to whoever owns life safety for that route, confirmed with the authority having jurisdiction, with the security requirement represented rather than deciding.
Three consequences follow for a UAE project:
- Decide before the lane layout is fixed. If a route is required to be fail-safe and the security concept depended on it being fail-secure, the resolution is usually an additional controlled boundary further inside the building, which is a floor-plan change, not a controller change.
- Document the behaviour in words, not labels. The terms fail-safe and fail-secure are used loosely in correspondence and mean opposite things. Describe the physical behaviour on alarm and on power loss in plain language in the design documentation, so the authority, the fire contractor and the installer are all reading the same requirement.
- Where a lane is set fail-secure, the escape provision has to come from somewhere else (an adjacent door, a break-glass release) and that provision belongs in the same submission. The manual release in the pedestal complements this decision; it does not substitute for it.
Requirements differ between emirates and change over time, so the position confirmed for one building is not automatically the position for the next one, even in the same portfolio.
Why the Wide Accessible Lane Matters
This is the swing barrier's defining characteristic. Because the panel rotates about a vertical axis at the pedestal, the lane can be made considerably wider than a tripod turnstile allows. A wide-lane swing barrier passes a wheelchair, a walking frame, a trolley, a suitcase, a delivery or a parent with a pram. A tripod turnstile physically cannot: its rotating arms define a fixed, narrow aperture.
That is why most real installations pair several narrow lanes with at least one wide swing lane. The narrow lanes carry the bulk of throughput at peak; the wide lane carries everybody the narrow lanes exclude. The wide accessible lane is a necessity, not an upgrade.
In this market the argument has a particular edge in hotels, serviced buildings and multi-tower residential communities, where luggage, housekeeping trolleys, grocery deliveries and pushchairs are not exceptions but the daily traffic. A lobby assembled entirely from narrow lanes produces an immediate problem, and the problem is always solved the same way: a side door is propped open, a security officer waves people around the lanes, and the entrance control becomes decorative. Getting the lane mix right at design stage is far simpler than retrofitting a wide lane into a finished lobby floor with services already cast in, and considerably simpler than explaining to a building owner why the access log no longer reconciles.
Coastal Humidity, Salt and Dust Inside a Lobby
A swing barrier is an indoor device, which leads people to assume the corrosion and particulate considerations that dominate an outdoor gate specification do not apply. In the UAE that assumption is wrong often enough to be worth addressing directly. A lobby opens onto the outside, its doors cycle continuously, and most development in the country sits close enough to the Gulf that the air moving through that doorway carries both humidity and chloride.
Three effects matter on a pedestrian lane, and they show up in different places from the ones an outdoor specification anticipates:
- Pedestal base fixings. The base plate sits at floor level, which is where mopping water, wash-down and condensate all collect, and where salt carried in on footwear is deposited and redissolved. Plated carbon steel anchors corrode here long before anything visible happens to the pedestal itself, and by the time a pedestal is noticeably loose the fixing has been working for months. Stainless of an appropriate grade is the specification response, and the grade matters more than the word, the wrong stainless in a chloride environment pits readily.
- Electrical terminations. The terminations in the pedestal base are the coolest point in the enclosure, which makes them where humid air gives up its moisture on a cool night after a hot day. Salt-bearing condensate on terminal blocks and connectors produces intermittent faults long before anything looks failed, a reader that occasionally does not respond, a sensor pair that drops out at the same time each morning. Inspecting terminations is the single most useful preventive check on a coastal lobby lane, and it has to be deliberate rather than visual from outside.
- Dust on the infrared array. The array works on a signal margin, and a film of fine dust on a lens attenuates the beam until the receiver reads an unbroken beam as broken. The controller takes that as a body in the lane, so the panel will not confirm passage and close, or it reopens mid-travel, or it raises a tailgating alarm against nobody. After a shamal wind event the dust load across an estate rises at once, and a post-event lens clean across all lanes prevents the week of nuisance alarms that otherwise follows. This is a recognised maintenance trigger here, and folding it into the routine works better than a fixed calendar alone.
None of these require exotic specification. They require the base fixing grade, the gland and sealing detail, and the lens cleaning frequency to be decided deliberately against the building's actual exposure, rather than inherited from a standard offering written for a temperate indoor environment.
Where Swing Barriers Are Used in the UAE
Pedestrian entrance control in this market concentrates in a recognisable set of building types:
- Corporate towers: the dominant application. Ground-floor lobbies in Business Bay, Dubai Marina and the Abu Dhabi commercial districts, usually with tenants on card or face, visitors on a pre-issued QR pass, and lift destination control behind the lane. Peak throughput at shift change is the number that sizes the lane count.
- Free zone offices: suite and floor entrances within zones such as Jebel Ali and Dubai South, where the fit-out sits inside a zone permitting framework and the visitor population turns over daily.
- Hotels and serviced buildings: back-of-house and staff entrances, spa and club access, and serviced-residence lobbies, where the credential is often a mobile one tied to an existing guest or resident application and the wide lane carries luggage as a matter of routine.
- Multi-tower residential communities: lobby lanes in each tower with a shared credential across the community, where the practical design problems are residents carrying shopping, deliveries arriving continuously, and a tailgating response that has to suit a residential population rather than a corporate one.
- Government and municipal buildings: controlled public entry with an accessibility obligation and a formal visitor process in front of the lane.
- Universities and schools: timetable-driven peaks across large campuses, with the lane passage frequently doubling as an attendance record.
- Hospitals and clinics: where the wide lane is least negotiable, because wheelchairs, walking aids and patient-accompanying traffic are the normal case, and where staff, outpatient and visitor routes usually need separating at the entrance.
- Industrial and logistics administration buildings: office and welfare entrances at facilities in Al Quoz and Mussafah, where shift arrival is sharply peaked and the entrance record feeds workforce reporting as well as security.
- Malls and mixed-use developments: office cores and tenant-only areas behind a public mall environment, where the entrance control starts at the core rather than at the street.
TimeWatch supplies, installs and services entrance control and associated access equipment for buildings across the United Arab Emirates, from Dubai and Abu Dhabi through Sharjah and Ajman to Ras Al Khaimah, Fujairah and Umm Al Quwain.
Integration With Other Systems
- Access control: the same credential database governing doors, vehicle gates and turnstiles governs the lane, so one revocation closes every route. On a multi-tenant tower this is what stops a departed employee's lobby access outliving their employment.
- Time and attendance: the lane passage doubles as the attendance punch, which removes a separate device at the entrance and is a common requirement on plant administration and institutional buildings.
- Visitor management: a pre-registered visitor receives a QR pass that the pedestal reader accepts for a defined window, with arrival notified to the host. Widely used in corporate towers and free zone offices.
- Lift destination control: a validated passage calls a lift to the user's floor. In tall UAE towers this is close to standard practice and it changes the lobby design, because queueing moves from the lift bank to the lane.
- CCTV and video analytics: the camera bookmarks footage against each lane event, so a tailgating alarm can be reviewed from its log entry rather than by scrubbing recordings.
- Fire alarm systems: a monitored contact driving panels to their configured emergency position, designed and documented as described in the regulatory section above.
- Community and tenant management platforms: in residential communities and serviced buildings, credential issue and revocation increasingly run from the same platform tenants use for other services, which is a software integration specified at the same time as the lane.
Installation Considerations
- Floor preparation and levelling: pedestals must be anchored to a level, load-bearing surface. Out-of-level pedestals misalign the beam pairs and cause intermittent false detections that are very hard to diagnose later and that present exactly like a contamination problem.
- Cable routing before the floor finish: power and data conduits must be cast or chased in before stone or tile is laid. In a tower lobby, retrofitting them afterwards is disruptive, visible and often impossible without closing the entrance.
- Lane mix and lane count: calculate peak throughput and fix the narrow-to-wide ratio at design stage, counting the delivery, luggage and trolley traffic the building will actually see rather than the headcount alone.
- Corrosion specification: base fixing grade, gland selection and sealing detail agreed at design stage against the building's distance from the coast, not chosen on site by whoever is installing.
- Beam alignment at commissioning: transmitter and receiver pairs aligned and the alignment verified across the full lane length, with the result recorded so later drift can be identified as drift.
- Panel clearance: the swept path of the panel must be clear of walls, planters, signage and adjacent pedestals through its full travel, including after a lobby refit adds furniture nobody consulted the installer about.
- Reader positioning and approach lighting: mount the reader so the natural approach presents the credential without the user turning back on themselves. For face recognition, consider strong daylight through a glazed entrance behind the user, which is a recognition problem rather than a product fault and is common in UAE lobbies.
- Power supply: stable supply, with battery or UPS provision where the lane must operate through an outage.
- Fire panel interface: wired, documented and tested as part of commissioning, with the behaviour matching what was agreed with the authority rather than what the controller defaults to.
- Authority coordination: permitting, approvals and any required documentation for the emirate and, where applicable, the free zone, confirmed before equipment is ordered.
Maintenance Considerations
- Clean every infrared lens on both pedestals, treating this as a scheduled item on its own frequency rather than as part of the mechanical service.
- Carry out an additional lens inspection after any significant dust or shamal event, outside the normal schedule.
- Open the pedestal base and inspect terminations, glands and gaskets for corrosion, discoloration or moisture, the single most useful preventive check on a coastal building.
- Inspect base fixings for corrosion and the pedestal for any movement, and keep floor-washing water away from the base during routine cleaning.
- Verify beam alignment periodically, and always after an impact to a pedestal. Trolley and luggage strikes are a common and under-reported cause in hotels and residential towers.
- Inspect the panel mount and fixings for looseness, and glass panels for edge chips before they propagate.
- Check drive and gearbox condition at the manufacturer's interval and listen for changes in travel sound, which usually precede a failure.
- Confirm the encoder is reporting correct end positions so the panel stops cleanly at both limits.
- Test the manual release, before it is needed rather than during an incident.
- Test the fire alarm interface as part of scheduled fire drills and record the result for the building's documentation.
- Review tailgating alarm logs. A rising rate is usually a sensor or alignment problem rather than a change in behaviour.
Benefits and Limitations
Benefits
- Accessible by design, the wide lane passes wheelchairs, walking aids, luggage, trolleys and deliveries, which is what makes the type workable in hotels, serviced buildings and residential communities.
- Controlled, recorded pedestrian access with a complete audit trail by credential, direction and time, which multi-tenant operators generally need for their own reporting.
- Active anti-tailgating and wrong-direction detection through the sensor array, with alarms recorded rather than merely sounded.
- Glass or acrylic panels suit finished lobby environments where a mechanical turnstile would look out of place.
- Integrates with access control, attendance, visitor, lift destination and CCTV systems so one record covers the entrance.
Limitations and considerations
- It is not a physical security barrier. Panels are waist or chest height on most models and can be climbed or vaulted. Where a physical boundary is the requirement, a full height turnstile or a secured door is the correct equipment.
- Throughput per lane is lower than a tripod turnstile on the same footprint, because the panel must complete its swing and the array must confirm passage before the next authorisation.
- Anti-tailgating performance varies widely between models according to beam count and arrangement, so it should be assessed on the specification rather than assumed from the product category.
- Corrosion is cumulative and quiet. Damage done by humid, salt-bearing air shows up as intermittent electrical faults long before anything looks obviously wrong, so termination inspection needs to be deliberate.
- Regulatory requirements are not uniform. What satisfies one emirate or free zone may not transfer to another, and requirements change, so each project needs its own confirmation, particularly for emergency behaviour.
Exact behaviour (panel opening time, lane width, beam count, alarm responses and integration options) depends on the specific model, controller, firmware and site configuration. Detailed figures should always be confirmed against the datasheet for the equipment being specified.
Swing Barrier vs Flap Barrier vs Tripod Turnstile
| Swing barrier | Flap barrier | Tripod turnstile | |
|---|---|---|---|
| Mechanism | Panel rotates about a vertical axis to clear the lane | Flap retracts into or folds back towards the pedestal | Three-armed rotor rotates 120 degrees per passage |
| Lane width and accessibility | Can be made wide; passes wheelchairs, trolleys and luggage | Standard and wide variants available; wide models pass most accessibility needs | Fixed narrow aperture; cannot pass a wheelchair or trolley |
| Throughput | Moderate; panel travel and passage confirmation set the pace | Generally faster than swing, as flap travel is shorter | High for unencumbered single-file flow |
| Physical robustness | Moderate; glass or steel panel, climbable | Moderate to lower; flaps are lighter and more easily forced | Higher; mechanical rotor resists forcing, though still waist height |
| Typical UAE setting | Tower lobbies, hotels and serviced buildings, residential communities, hospitals, any entrance needing an accessible lane | Office cores and high-throughput concourses where a slim footprint matters | Labour accommodation, site and plant gates, stadiums and single-file flow |
The three are complements rather than alternatives, and a well-designed entrance usually mixes them. A common arrangement in a UAE tower lobby pairs several flap lanes for volume with one wide swing lane for accessibility, luggage and deliveries, with the lane count driven by the shift-change peak rather than by the floor area available.
Frequently Asked Questions
How does a swing barrier detect a person?
An infrared sensor array in the two pedestals detects the person. Transmitter and receiver beam pairs at several heights face each other across the lane, and the controller reads which beams are broken and in what order. That sequence tells it how many bodies are in the lane and which direction they are moving.
How does a swing gate stop tailgating?
The controller compares the pattern of beam breaks against the pattern a single authorised passage produces. If beams at the rear of the lane stay broken after the front beams have cleared, it treats that as a second body on one authorisation and raises a tailgating alarm. Depending on configuration it may also close the panel against the follower or hold the lane locked until an operator resets it.
Do turnstiles and swing barriers in Dubai fall under SIRA regulation?
Security systems in Dubai, and the companies that supply and install them, operate within the regulatory framework of the Security Industry Regulatory Agency, so equipment selection and installer engagement are a regulated matter rather than purely a commercial decision. What applies to a particular entrance control installation depends on the building and the system type. Requirements also differ between the emirates and change over time, so a project team should confirm the current position directly with the relevant authority rather than relying on general guidance.
Who decides whether a swing barrier opens or stays locked on fire alarm?
Not the controller settings, and not the security manager alone. Civil defence authorities govern how entrance control panels behave on fire alarm, which makes the fail-safe versus fail-secure choice a regulatory determination in the UAE rather than a configuration preference. The decision belongs to whoever owns life safety for that route, confirmed with the authority having jurisdiction, with the security requirement represented in the discussion. Because requirements differ between emirates and change over time, it must be confirmed per project rather than carried over from another building.
What is the difference between a swing barrier and a flap barrier?
The difference is how the moving element clears the lane. A swing barrier rotates a rigid panel about a vertical axis, while a flap barrier retracts or folds its flaps back towards the pedestal. Swing barriers are generally chosen where a wide accessible lane is needed; flap barriers are generally chosen where throughput and a slim footprint matter more.
Can a wheelchair pass through a swing barrier?
Yes, provided a wide lane has been specified. The swing barrier is the lane type that can be made wide enough for a wheelchair, a walking frame, a trolley, luggage or a delivery, which a tripod turnstile physically cannot. In hotels, serviced buildings and residential communities the wide lane also carries the daily luggage, housekeeping and grocery traffic, so it should be treated as a requirement from the first lobby layout rather than as an option added later.
Does coastal humidity and salt air affect a swing barrier installed indoors?
Yes, more than most people expect. A lobby opens onto the outside and its doors cycle continuously, so humid salt-bearing air reaches the equipment. The vulnerable points are the pedestal base fixings, where mopping water and footwear-borne salt collect, and the electrical terminations in the pedestal base, where condensate forms on cool nights and produces intermittent faults long before anything looks failed. Stainless fixings of an appropriate grade and deliberate inspection of terminations are the practical responses.
What motor does a swing barrier use?
Most current models use a brushless DC servo motor with a reduction gearbox and a position encoder on the shaft. The encoder lets the controller track panel position continuously, decelerate smoothly into each end of travel, and detect an obstruction by monitoring drive load. Motor rating has to suit the panel material and weight, since a heavy glass panel loads the drive considerably more than an acrylic one.
Is a swing barrier a turnstile?
It belongs to the same family. Turnstile is the general term for a pedestrian entrance control lane, and swing barriers, flap barriers, tripod turnstiles and full height turnstiles are all types within it. Swing barriers are sometimes called swing turnstiles or swing gates for that reason.
How wide is a swing barrier lane?
Standard lanes are sized for a single person walking through, while wide accessible lanes are considerably broader to take a wheelchair or trolley. The exact dimensions are a specification of the individual model and should be read from its datasheet, because panel length and pedestal spacing vary between products. Confirm the required accessible width with the building owner and the relevant authority before the lobby floor layout is fixed.
Can a swing barrier be integrated with lift destination control?
Yes, and in tall UAE towers it is close to standard practice. A validated passage at the lane can call a lift to the user's registered floor, so the person walks from the lane straight to an allocated car. It is a software integration between the access platform and the lift controller rather than a function of the barrier itself, but it is specified at the same time because it changes the lobby layout, queueing moves from the lift bank to the lane, which affects how many lanes the entrance needs.
