How Does a Tripod Turnstile Work?
What Is a Tripod Turnstile?

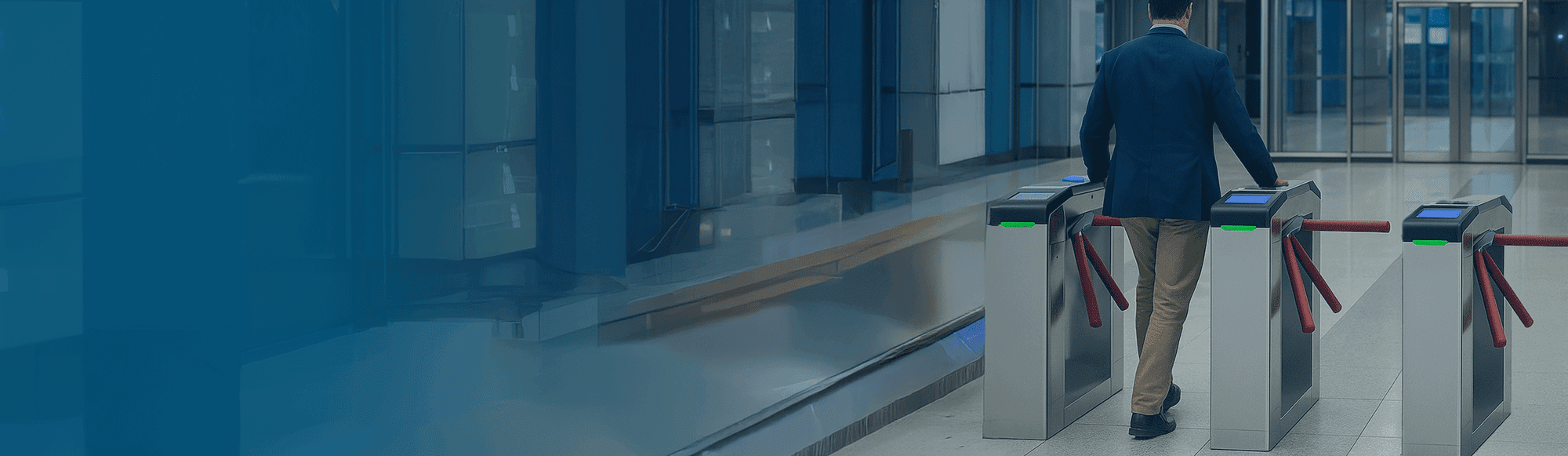

A tripod turnstile (also called a tripod barrier, tripod gate or waist-height turnstile) is specified in the Emirates for two reasons that usually travel together: it survives a hard environment, and it enforces one person per credential as a matter of geometry rather than as a matter of detection. That combination is why it turns up at labour accommodation entrances, at construction site gates across Dubai and Abu Dhabi, at the pedestrian perimeters of port and free zone facilities, and on stadium entry lines.
It belongs to the same family as the flap barrier and the swing barrier. What separates it is not appearance but how it refuses a second passage, and that distinction turns out to be the whole specification argument.
The rotor head sits at an angle rather than horizontally, so the arms are at a comfortable pushing height on the approach side and sweep upward and away as the user walks through. That angle is what lets a single 120-degree turn clear the lane for one body and bring the next arm into the blocking position behind them.
How Does a Tripod Turnstile Work?
A tripod turnstile works in five stages. A person presents a credential at the reader, a card, a fingerprint, a face, a QR code. The controller validates it and, on a valid result, releases the lock by energising a solenoid or electromagnet that withdraws a locking pin from the cam plate on the rotor shaft. The user then pushes the arm and the rotor turns through 120 degrees, its speed governed by a damper. A microswitch or encoder confirms the completed rotation, the lock re-engages against the next cam position, and the passage is logged.
Present, validate, release, rotate, re-lock. Everything else on this page is detail beneath those five words, including the two questions that take up most of a UAE project meeting: who may specify and install the system, and what it is required to do when the fire alarm sounds.
Main Components of a Tripod Turnstile
| Component | Function | What to settle at specification stage here |
|---|---|---|
| Housing / pedestal | Stainless steel cabinet carrying the rotor, lock, damper, controller and power supply. | Material grade against coastal exposure. Most UAE sites sit close enough to the Gulf that 316 at the housing and base fixings is a reasonable default rather than an upgrade. |
| Rotor head and three arms | Three horizontal arms 120 degrees apart on a hub, the shaft angled so the arms sweep up and away as the user passes. | Arm and hub fixings are a salt-exposed interface. Individually replaceable arms matter at a site gate where impacts are routine. |
| Locking mechanism | A solenoid or electromagnet driving a locking pin, plus a cam plate keyed to the rotor shaft. The pin sits in a notch to hold the rotor. | Enclosure sealing around the lock assembly, and whether the housing can be opened for inspection without disturbing the alignment. |
| Damper | A hydraulic or friction unit on the rotor shaft governing rotation speed, so the arms cannot be spun violently and come to a controlled stop. | The wear part. Confirm it is a serviceable, separately available item rather than part of a sealed assembly, because it will be replaced before anything else. |
| Controller / control board | Drives the solenoid per direction, applies direction and anti-passback rules, manages the release timeout and talks to the access control platform. | Conformal coating where the evaluation allows the question, and whether the unit's communication protocol suits the platform the client's security consultant has already specified. |
| Microswitch or rotary encoder | Reads rotor position and confirms a full 120-degree rotation, which triggers the re-lock and the log entry. | Which method the model uses, and how it treats a partial rotation, relevant wherever the lane count feeds a headcount that must be defensible. |
| Credential reader | RFID card reader, fingerprint or palm sensor, face recognition terminal or QR scanner, normally one per side. | UAE residents are already comfortable with contactless RFID identification from windscreen-tag road use, so card and tag credentials are an easy concept for a mixed workforce to adopt. |
| Direction indicator LEDs | Arrow and cross symbols showing whether the lane is released in a given direction, so users do not push a locked rotor. | Readability in strong direct sun at an open gate, and whether symbols alone carry the message for a workforce with many first languages. |
| Power supply | Low-voltage DC inside the housing, with battery or UPS backup where the lane must stay controlled through an outage. | Backup duration, and whether the chosen emergency behaviour depends on the supply being present at the moment the alarm sounds. |
| Drop-arm mechanism (where fitted) | A latch releasing the arms so they fall vertically on fire alarm or loss of power, clearing the lane for evacuation. | A hardware variant that must be ordered. Whether it is required is a civil defence and fire strategy question, not a preference, see the regulatory section below. |
Housing and pedestal
The housing absorbs every push, so its fixing matters more than it looks. A tripod on an uneven or under-anchored base rocks very slightly under each passage, and that movement works into the rotor bearing and the lock alignment over a few hundred thousand cycles. At a labour accommodation entrance passing a few thousand people twice a day, a few hundred thousand cycles arrives quickly.
On UAE sites there is a second consideration at the base. Pedestals are frequently installed on an interlock or concrete pad that is washed down, and where the lane sits outdoors the base fixing is the point where water, salt and grit all concentrate. Specifying the fixings a grade above the obvious choice is one of the simplest decisions available at design stage and one of the hardest to correct later.
Rotor head and the three arms
Three arms at 120 degrees is the smallest number that keeps one arm blocking the lane while another is clear of the walking path. Two arms would need a 180-degree turn, sweeping the trailing arm through the user's path; four would leave a gap too narrow to walk through. Arms are usually stainless steel tube and, on most models, individually replaceable after an impact, which is a routine event on a site gate where arms meet tool bags, scaffold poles and reversing vehicles.
Locking mechanism: solenoid, cam plate and locking pin
This is the heart of the device. Keyed to the rotor shaft is a cam plate carrying three notches, one per arm position. A spring-loaded pin rests in whichever notch is presented, and while it is seated the rotor cannot turn. When access is granted, a solenoid or electromagnet pulls the pin clear. The rotor is now free, but only free, nothing drives it, and the user supplies the force.
As the rotor turns, the pin rides the plate's outer profile under spring pressure until, at 120 degrees, the next notch arrives beneath it and the pin drops in. That sequence completes mechanically whatever the electronics do next, which is why a tripod keeps working on a gate where the network link, the reader and the supply are all having a harder time than they would in a tower lobby.
The damper
The damper resists rotation in a controlled way. Without it a released rotor could be spun hard, the arms would whip round and the pin would slam into the next notch. With it, the arms move at a steady pace whatever force is applied and stop softly as the lock re-engages.
It is also the component that wears, and it is the one most often misdiagnosed. A tripod that has started to feel loose, notchy, or that slams audibly at the end of each rotation is almost always reporting its damper, not its lock. Solenoids and control boards are replaced chasing that symptom far more often than they should be, the lane feels right for a week, and the complaint returns. Where the lane sits outdoors in humid coastal air, the damper's seals are also the first part of the mechanism a salt-laden film reaches.
Controller, reader and rotation sensing
The controller holds the release timeout (how long the rotor stays unlocked before the permission lapses) along with the direction rules, the anti-passback logic and the interface to the wider system. The reader is separate from the mechanism, so a lane can be re-fitted from card to face recognition without touching the rotor, which matters on a site where the workforce and the credential policy both change over the life of the project.
Rotation is sensed by microswitches tripped by lobes on the cam plate, or on newer models by a rotary encoder reading the shaft continuously. An encoder can tell a completed passage from a turn abandoned halfway. Which method a lane uses, and how it treats a partial rotation, varies by model and should be confirmed against the datasheet, particularly where the gate record will be used to evidence headcount.
How Does a Tripod Turnstile Work Step by Step?
| Step | What happens | How it works |
|---|---|---|
| 1 | Lane sits locked at rest | The pin is seated in a cam plate notch, holding the rotor. One arm blocks the lane at waist height and the indicator shows a cross. |
| 2 | Credential is presented | An RFID card is tapped, a finger or palm placed, a face presented, or a QR code shown to the scanner. |
| 3 | Credential is validated | The controller or access control platform checks the identity against the permitted list, with any time zone, direction or anti-passback rule applied. An invalid one is logged as a denied attempt. |
| 4 | Lock is released | The controller energises the solenoid for that direction, withdrawing the pin from the notch. The rotor is free and the indicator changes to an arrow. |
| 5 | User pushes the arm | On mechanical and semi-automatic models the user supplies the force. On a fully automatic model a motor drives the rotation instead. |
| 6 | Rotor turns under damper control | The damper holds the arms to a steady pace however hard they are pushed, so they cannot be spun onto the next person. |
| 7 | Rotation reaches 120 degrees | The next notch arrives beneath the waiting pin, which drops in. The rotor is locked and the next arm blocks the lane. |
| 8 | Completed rotation is detected | A microswitch tripped by the cam plate, or an encoder on the shaft, confirms a full segment has been travelled. |
| 9 | Permission is consumed | The controller clears the release, so anyone following finds the rotor locked. If rotation is not completed within the release timeout, the permission lapses with no passage recorded. |
| 10 | Event is logged | The passage (identity, direction, lane, timestamp) is written to the access control or attendance database. |
Step 9 is where a tripod differs from every other entrance control device, and it deserves its own section.
Build Types and Directional Control
Mechanical, semi-automatic and fully automatic
The three build types share the same rotor and the same 120-degree geometry, and differ in how the release and the rotation are produced.
| Type | How the lock is released | What turns the rotor | Where it typically sits in this market |
|---|---|---|---|
| Mechanical | No electrical release. The rotor turns freely in the permitted direction, or is released by a coin, token or an attendant's lever. | The user pushes the arm. | Counting and queue discipline where no credential is needed, a managed queue route, a ticketed ground entrance, a temporary event lane. |
| Semi-automatic | A solenoid or electromagnet withdraws the pin on a valid credential. | The user pushes the arm. | The common configuration at labour accommodation, construction gates, free zone perimeters, warehouse pedestrian entrances and campus gates. |
| Fully automatic | A solenoid or electromagnet withdraws the pin on a valid credential. | A motor drives the rotor through the full 120 degrees after release. | Public-facing and higher-traffic lanes, and locations where users are routinely carrying bags or equipment. |
Semi-automatic is what most people picture, and in this environment it has a specific advantage: fewest powered parts, tolerant of dust, heat and rough handling, and if the electronics fail the mechanical lock still holds the line. Fully automatic units move the effort from the user to a motor and add one more powered assembly to maintain in humid coastal air. The choice is a duty and environment decision, not a hierarchy.
How bi-directional control works
A tripod rotates in one direction at a time, and most models carry separate release logic for each direction, in practice a second solenoid, or a single lock with directional cams, on its own controller input. That allows three configurations from the same hardware: entry controlled with exit free; both directions controlled; or one direction locked entirely so a lane becomes entry-only or exit-only within a bank of turnstiles.
The consequence people often miss is this: anti-passback (the rule that stops a credential entering twice without an intervening exit) only works if exits are actually read. A site that leaves exit free cannot enforce it and cannot produce a reliable live headcount. On a construction site where the number of people inside the hoarding at any moment is a safety figure, both directions must be controlled, and that has to be settled before the lane count is fixed, because controlling both directions roughly doubles the passages each lane handles.
The Regulatory Context for Entrance Control in the UAE
Entrance control sits across two distinct regulatory conversations in the Emirates, and projects that treat them as one conversation generally discover the difference late. One concerns who may specify, supply and install a security system. The other concerns how that system is required to behave when the fire alarm sounds. They are decided by different authorities and they have different consequences for a tripod turnstile.
SIRA and the Dubai security regulatory framework
In Dubai, security systems and the companies that install them operate within the framework of SIRA, the Security Industry Regulatory Agency. The practical implication for a turnstile project is that equipment selection and installer engagement are a regulated matter rather than purely a commercial choice: the contractor engaged to install and maintain a security system, and the arrangements around that system, fall within a framework that a project team must establish for its own site and system type.
Two things follow for a specifier. First, the question "who is going to install this" belongs at the start of the procurement conversation, not at the end, because the answer constrains the field. Second, current SIRA requirements must be confirmed for the specific site and system type: the framework develops, and what applies to one facility category does not automatically apply to another. Nothing on this page should be read as a statement that any particular product or company holds any particular approval, licence or registration; that is a question for the supplier and the installer, evidenced for that specific engagement.
Civil defence and the drop-arm decision
The second conversation is life safety, and it is governed by civil defence, Dubai Civil Defence and the equivalent authorities in the other emirates. For most security equipment this comes down to a dry contact and a documented behaviour. For a tripod turnstile it comes down to something more consequential, because the device sits physically across a walking route and has two quite different ways of getting out of the way.
That is the drop-arm decision, set out in full in the next section. Either the turnstile is a drop-arm variant whose arms fall vertically on alarm and clear the lane completely, or it is a fail-locked rotor with a separate adjacent emergency gate released by the fire panel. Which of those applies is determined by the fire strategy for the route, agreed with the authority, before the equipment is ordered: because a drop-arm mechanism is a hardware variant that must be specified at purchase, and an emergency gate needs floor space, a fire panel signal and a place on the evacuation plan. It cannot be resolved by changing a controller setting at commissioning, and discovering it at inspection stage means re-ordering equipment that is already on site.
Abu Dhabi, the northern emirates and free zones
Abu Dhabi operates its own framework, and the other emirates (Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain) apply their own arrangements. Free zones add a further layer: authorities at Jebel Ali, Dubai South and the industrial zones around Abu Dhabi commonly publish requirements that sit on top of emirate-level rules, and a facility inside a free zone may have to satisfy both.
The rule to carry away is simple and should be stated in every project brief: requirements differ between emirates, differ again inside free zones, and change over time. They must be confirmed per project with the relevant authority before the lane layout and the equipment schedule are fixed. Large clients (port operators, developers, contractors and venue owners) also publish their own technical specifications, which frequently go further than the authority baseline in areas such as material grade, enclosure protection and accessibility provision.
Drop-Arm Turnstiles and Emergency Egress
A locked rotor across a walking route is a problem during an evacuation, and there are two accepted answers to it.
The first is a drop-arm turnstile. The arms are held by a latch rather than fixed rigidly to the hub, and on a fire alarm signal or loss of power the latch releases and all three arms fall vertically. The lane is then completely clear (not merely unlocked but physically open) so people can stream through in a crowd without the rotor being turned at all. The arms are re-set by hand afterwards. On a labour accommodation entrance or a stadium line, where the evacuating population is large and moving fast, the ability to clear the lane entirely rather than require a push per person is the whole point.
The second is a fail-locked rotor with a separate adjacent emergency gate. The turnstile keeps its integrity through an alarm and evacuation is routed through a wide side gate released by the fire panel. This suits sites where the turnstile line must stay secure during an incident, a port perimeter or a controlled free zone boundary, for instance.
Both are legitimate and they are not interchangeable. Which one applies is a life-safety design decision made with the fire strategy and the civil defence authority for that emirate, in conversation with the fire consultant, at design stage. It is not a setting chosen in the controller afterwards.
Behaviour on power loss varies by model and configuration and should never be assumed: some units are fail-safe and release the lock so the rotor can be pushed freely, some are fail-secure and hold locked, and drop-arm units clear entirely. Confirm it against the datasheet, then test it as part of commissioning and again at each fire drill, and note that the drop-arm latch is itself a mechanism that benefits from being exercised rather than left untouched between inspections.
Labour Accommodation and Construction Site Gates
These two applications account for a large share of tripod turnstiles installed in the Emirates, and they are worth treating together because they share the same requirement: a headcount that holds up.
At a labour accommodation entrance the lane has to pass several thousand people in a short window, twice a day, with buses arriving in convoy. The population is large, the credential is usually a card or a tag, and the record is used for occupancy and welfare reporting as well as for access. At a construction site gate the same mechanism is doing a slightly different job: it is enforcing that the person entering the hoarding is inducted, permitted and currently on the project, and it is producing the number of people inside the boundary at any moment.
Three design points follow, and all three are routinely got wrong:
- Size the lanes from the arrival pattern, not the headcount. Figures commonly quoted for a tripod lane are in the region of 20 to 30 people per minute, approximate and equipment-dependent, varying with the model, whether the unit is semi-automatic or fully automatic, the damper setting and the controller timing. But when four buses arrive together, the limiting factor is how long each person takes to present a card, and whether the approach spreads the queue across the bank or funnels it into the two nearest lanes.
- Control both directions if the count is a safety figure. A live occupancy number and anti-passback both depend on exits being read. Leaving exit free halves the lane load and destroys the number, and the exit peak is usually sharper than the entry peak because people leave together in a way they do not arrive together.
- Tie the release to induction and permit status. The most valuable integration on a site gate is the one that refuses to release the rotor for a worker whose induction or permit has lapsed. It moves a compliance check from a clipboard at a desk to the mechanism itself, and it is the single strongest argument for a controlled lane over a manned one.
Credential choice deserves a note. A workforce with many first languages adopts a tap-and-go card or tag faster than anything requiring instruction, and UAE residents are already familiar with contactless RFID identification from windscreen-tag road use, which makes the concept unremarkable. Fingerprint readers, by contrast, struggle with the dry and worn hands common on a construction site, which is a practical reason card and face methods tend to prevail on these gates.
Coastal Humidity, Salt and Dust on the Rotor Assembly
Most UAE development sits close to the Gulf coast, which makes corrosion a near-universal design condition rather than a special case. A tripod turnstile is a simple device and people assume it is environment-proof. It is not: it is a mechanism with a rotating shaft, a spring-loaded pin riding a machined plate and a damper with seals, and in this climate those are the parts that decide the service interval.
Salt film on the rotor assembly and housing
Salt-laden humid air reaches everything exposed, and salt is hygroscopic, it draws moisture from humid air and holds a conductive film against metal long after any visible wetting has gone. On a tripod the vulnerable points are specific and worth naming, because a generic corrosion inspection tends to look at the wrong places.
- Base fixings, where washdown water and grit concentrate and where plated carbon steel fails first.
- Cut edges and welds inside the housing, which are rarely finished as well as the visible exterior.
- Arm-to-hub fixings, an exposed threaded interface that is disturbed each time an arm is replaced after an impact.
- Electrical terminations at the housing base, which sit at the coolest point of the enclosure and collect condensate, in a lane that is air-conditioned on one side and open to the outside on the other, that condensate is a daily event rather than a seasonal one.
- The rotor shaft and damper seals, where a salt film works into the one interface the mechanism cannot tolerate contamination at.
The specification response is 316-grade stainless at the housing and base fixings where exposure justifies it, galvanising on any structural steelwork framing the lane, coated cut edges, and a conformally coated control board where the technical evaluation allows the question to be asked.
Heat, humidity and the duty figure on the datasheet
Summer ambient above 45°C combined with high humidity is a harder condition for electronics than dry heat at the same temperature, and a steel housing standing in direct sun runs considerably hotter inside than the air around it. A duty cycle figure on a datasheet is quoted at a reference ambient; at a higher one the permissible sustained rate falls, because the solenoid, control board and power supply all have less thermal headroom. Planning a shift-change window on the catalogue number is how a gate ends up with a solenoid that starts missing releases in the second hour of a July afternoon.
A hydraulic damper's fluid also thins as it heats, so the same lane feels different in August and in January. Where a model allows damping to be adjusted, the setting is worth re-checking seasonally rather than being set once at commissioning.
Dust after a shamal and what it reaches first
Shamal wind events are a recognised maintenance trigger across the Emirates, and on a tripod the dust they deposit does its damage in three places: the damper's shaft seal, where particulate acts as a grinding medium; the cam plate notches and locking pin, which engage under spring pressure on every single passage; and the rotor bearing, if its seal has been compromised. The symptom that surfaces first is almost always the damper, a rotation that feels loose or notchy, or a lock that slams rather than seats.
After a significant dust event, an additional inspection of the rotor assembly and damper is justified regardless of where the lane sits in its schedule. It takes minutes per lane and it prevents the slow degradation that otherwise gets written off as the lane "getting old".
The Accessibility Limitation and the Controlled Wide Gate
This needs stating without hedging. No wheelchair, trolley, stretcher, pram or large item of luggage can pass through a tripod turnstile, and no configuration changes that. The rotating arms define a fixed, narrow aperture. It is a geometric fact about the device, not a limitation of a particular model.
At a site gate serving a fit working population that is a manageable constraint, though even there a stretcher has to be able to reach an injured person and leave with them. At any entrance used by the public (a stadium concourse, a free zone visitor entrance, a mall service lobby, a facility with elderly or less mobile visitors) an entrance assembled only from tripods produces a day-one access problem, and the usual on-site resolution is to prop a side door open, which defeats the entrance control completely and silently. An adjacent wide gate is required, and it should be planned into the entrance from the first layout.
Then comes the point that gets missed. The wide gate becomes the weakest point in the line unless it is itself controlled. A wide gate left on a manual latch, watched by a guard who also has other duties, or propped open at the busy period, undoes everything the turnstiles beside it enforce, one release equals one rotation at the tripod, and an unlimited number of passages at the gate four metres away. It needs its own reader, its own lock and its own place in the log, and on a site where the headcount is a safety figure, a passage through that gate must appear in the record exactly as a passage through a lane does.
Where Tripod Turnstiles Are Used in the UAE
Tripod turnstiles concentrate in a recognisable set of Emirates applications, places where passage must be counted one person at a time and where the equipment lives a harder life than a tower lobby:
- Labour accommodation: entrance and exit control at staff accommodation across Al Quoz, Mussafah, Jebel Ali and the industrial areas of Sharjah and Ajman, where several thousand residents move through a short window twice a day and the record supports occupancy and welfare reporting as well as access.
- Construction sites and project compounds: hoarding entrances on projects across Dubai, Abu Dhabi and the northern emirates, enforcing induction and permit status at the gate and producing the number of people inside the boundary at any moment.
- Ports and logistics facilities: pedestrian perimeters at Jebel Ali Port, Khalifa Port and the surrounding industrial zones, separating people from vehicle and equipment routes and controlling access to operational areas.
- Free zone facilities: warehouse, workshop and light industrial units in JAFZA, Dubai South and KIZAD, where a free zone authority's own requirements may sit on top of emirate-level rules.
- Stadiums, arenas and event venues: ticket validation at entry, where the mechanical one-person-per-scan property directly protects the capacity the venue is licensed to hold, and where the entire crowd arrives inside an hour.
- Back-of-house and service entrances: staff routes behind hotels, malls and mixed-use developments in Business Bay, Dubai Marina and the Abu Dhabi commercial districts, where the staff count matters and the finish does not need to match a public lobby.
- Industrial and utility facilities: plant and depot gates in Mussafah, Al Quoz, Ras Al Khaimah and Fujairah, where a mechanical lock that holds without power is worth more than a lane depending on a healthy network link.
- University and institutional campuses: student and staff entry with attendance recorded at the lane, where timetable-driven peaks are sharp and predictable.
Across these applications the turnstile is rarely the whole answer. It is the enforcing part of an entrance that also contains identification, induction and permit checking, recording and, on some sites, a screening stage, and it performs when it is specified as part of that entrance rather than bought on its own. TimeWatch supplies entrance control and related access and inspection equipment for projects in the UAE.
Integration With Other Systems
A tripod turnstile lane rarely operates alone. The integrations that matter most on UAE projects:
- Access control: the credential database governing doors and vehicle gates also governs the lane, so one revocation closes every route at once. On a contractor-heavy project that single point of revocation is the main operational benefit.
- Contractor induction and permit systems: the lane releases only for workers whose safety induction and permit to work are current, enforcing compliance at the gate rather than checking it on paper. This is the highest-value integration on a construction site here.
- Time and attendance: the passage event doubles as the attendance punch, removing a separate clocking queue from an already compressed shift change.
- Occupancy and muster reporting: reliable only where both directions are controlled and where passages through the adjacent wide gate are logged too. An incomplete record is worse than no record during an incident.
- Visitor management: a pre-registered visitor receives a QR code or temporary card the lane accepts for a defined window, with the visitor route usually running through the controlled wide gate rather than the tripods.
- CCTV and video analytics: footage bookmarked against each lane event, so a denied attempt or an incomplete rotation can be reviewed from its log entry rather than by scrubbing recordings.
- Fire alarm systems: the hardwired dry contact that drops the arms or releases the lock on alarm, overriding all software logic. Treat it as an interface between two systems, designed and tested with the fire contractor, not as a pair of wires added at the end.
Installation and Maintenance Considerations
Installation and commissioning
- Settle the egress strategy and the installer question before ordering. The drop-arm variant has to be specified at purchase, and the installer engagement falls within the applicable regulatory framework for the emirate. Both belong at the front of the programme.
- Plan the controlled wide gate into the entrance from the first layout, with its own reader, lock and log entry. Retrofitting it into a finished gatehouse is disruptive and usually compromised.
- Foundation and anchoring: a level, load-bearing base and correctly torqued anchor bolts, re-checked after the first months of service. Movement under load transfers into the rotor bearing and the lock alignment.
- Lane geometry: guide railings, hoarding or a fence line on both sides so the turnstile cannot be walked around. On a construction site the hoarding line moves as the works progress and needs re-checking against the lane.
- Approach and queueing space: enough depth in front for the bus-arrival queue, clear space behind so people leaving are not blocked, and an approach that distributes the queue across the bank.
- Shade and orientation: where the layout allows, avoid leaving housings in unbroken direct sun through the afternoon, and avoid readers facing into low sun that defeats a face recognition terminal or washes out an indicator.
- Reader position: set where the user is already reaching the arm as the release lands. A badly placed reader adds a second to every passage, invisible at ten people and very visible at two thousand.
- Cabling and sealing: power, network and reader cabling up through the base in conduit laid before the surface finish, with entries sealed against salt-laden air and particulate rather than left open behind a cover plate.
- Power supply and backup: stable supply, UPS where lane control must survive an outage, and a tested understanding of what each lane does when supply fails.
- Fire panel interface: wired, documented and tested at commissioning with whichever egress strategy has been agreed, and recorded so the behaviour can be evidenced at inspection.
Maintenance routine
- Check the damper first, every time. A lane that has become loose, notchy, or that slams at the end of rotation is usually reporting damper wear, and this is the most commonly misdiagnosed fault on the device.
- Inspect the cam plate notches and locking pin for wear and contamination, confirm the pin seats cleanly in all three positions, and confirm the rotor cannot be reversed once locked.
- Inspect base fixings, cut edges, arm-to-hub fixings and internal terminations for corrosion at every visit, and keep washdown water away from the housing base.
- Check enclosure sealing (cable entries, lid joints and the shaft entry) because that is the route salt film and particulate take to everything else on this list.
- Listen to the solenoid on release; a sluggish or chattering actuation is an early warning, and on a hot gate it is often the first sign the enclosure is running above the supply's comfortable range.
- Confirm the microswitch or encoder registers every completed rotation, by comparing physical passages against logged events over a sample period. A lane that under-reports is a headcount problem waiting to surface at the worst moment.
- Inspect arms for bending, impact damage and secure fixing at the hub, and the housing for movement under load.
- On drop-arm units, test the drop and the manual re-set at each fire drill and confirm the arms fall cleanly and completely. Record the result, it is the evidence that the agreed egress behaviour still works.
- Review logs for a rise in incomplete rotations, which usually points to a release timeout set too short, a reader too far from the arm, or a damper that has stiffened.
- Carry out an additional rotor and damper inspection after any significant dust event, outside the normal schedule.
Benefits and Limitations
Benefits
- Mechanical one-person-per-credential enforcement that does not depend on sensors, software or configuration being correct, the property that makes a site headcount defensible.
- Tolerant of heat, humidity, dust, vibration and rough handling, which is why the type endures at site and accommodation gates where more refined lanes do not.
- Few powered components on semi-automatic models, and a mechanical lock that holds if the electronics fail or the network link drops.
- Reader-agnostic: card, tag, fingerprint, face or QR, changeable without altering the mechanism as a project's credential policy evolves.
- A complete audit trail by identity, direction and time, usable for attendance and, where both directions are controlled, for live occupancy and muster reporting.
- Readily integrated with induction and permit systems, so a lapsed permit stops the person at the gate rather than being noticed in a report afterwards.
Limitations and considerations
- No accessible passage whatsoever. Wheelchairs, trolleys, stretchers, prams and large luggage cannot pass. An adjacent wide gate is required, and unless it is itself controlled and logged it becomes the weakest point in the installation.
- Waist-height control only. The arms can be climbed over or crawled under. The device works as part of a physical line (hoarding, fence, wall or manned gatehouse) not on its own.
- Lower throughput than flap and swing barriers, because each person must complete a physical rotation, which interacts badly with a bus-arrival peak if the lane count was sized from a catalogue rate.
- The user has to do something. Semi-automatic models require a deliberate push, awkward for anyone carrying tools or a bag.
- The damper is a consumable, and humid, salty, dusty air shortens its life. Plan for its service or replacement rather than chasing a change in feel through the electronics.
- Egress behaviour must be designed in and agreed. Drop-arm or adjacent emergency gate is a hardware and layout decision taken with the fire strategy and the relevant civil defence authority, not a configuration choice made later.
- Installer engagement is a regulated matter in Dubai and arrangements differ between emirates and free zones, so the delivery route must be established alongside the technical specification rather than after it.
Exact behaviour (release timeout, rotation sensing method, damper characteristics, power-failure state, enclosure protection and integration options) depends on the model, controller, firmware and site configuration, and should always be confirmed against the datasheet for the equipment being specified.
Tripod Turnstile vs Flap, Swing and Full-Height Turnstiles
| Tripod turnstile | Flap barrier | Swing barrier | Full-height turnstile | |
|---|---|---|---|---|
| Mechanism | Three arms on an angled rotor; the user pushes through a 120-degree segment after release | Flaps retract horizontally into the pedestals | Solid panels rotate open through an arc on a vertical pivot | Full-height rotor with vertical bars turning within a fixed cage |
| Anti-tailgating method | Mechanical. One release permits exactly one rotation; a second person cannot follow | Sensor-based. An infrared array counts bodies and alarms on a violation | Sensor-based, same principle as the flap barrier | Mechanical and complete; the cage blocks the opening from floor to head height |
| Accessibility | None. A separate controlled wide gate is required | Standard lanes are narrow; a wide accessible lane is normally added alongside | Wide-panel versions often serve as the accessible lane in a bank of gates | None. A separate controlled accessible gate is always required |
| Throughput | Moderate; commonly quoted around 20 to 30 people per minute per lane, equipment-dependent | Faster; commonly quoted around 30 to 40 people per minute per lane, equipment-dependent | Moderate; the panel sweeps an arc, so the cycle is longer than a flap | Lowest of the four; the rotor is large and each passage takes longer |
| Behaviour outdoors in coastal air | Tolerant, given material grade and sealing. The damper and rotor assembly are the parts to protect | Sensitive; optical arrays foul and produce nuisance alarms, and light flaps can be forced | Sensitive for the same reason, with a heavier panel and a loaded drive | Tolerant, with a larger mechanism and more exposed surface to maintain |
| Typically suited to | Labour accommodation, construction gates, port and free zone perimeters, stadium entry lines | Office cores, finished concourses and high-traffic indoor entrances | Reception areas needing a wider lane and mixed pedestrian and trolley traffic | Perimeter lines, unmanned entrances, substations and high-security compounds |
The four are not better and worse versions of one another. A tripod is chosen for mechanical enforcement and durability, a flap barrier for throughput and appearance, a swing barrier for lane width and mixed traffic, a full-height turnstile for an unmanned perimeter that must not be climbed. Many UAE sites use more than one type on the same boundary, a bank of tripods at the workforce gate, a controlled wide gate beside them, and a full-height unit on a remote section of the perimeter.
Frequently Asked Questions
How does a tripod turnstile allow only one person at a time?
The rotor carries a cam plate with three notches, one per arm position, and a spring-loaded pin sits in whichever notch is presented. A valid credential energises a solenoid that pulls the pin clear, and the rotor turns 120 degrees until the next notch arrives beneath the pin and locks it again. One release permits exactly one rotation, so a second person finds the rotor locked and must present their own credential.
Why does a tripod turnstile rotate 120 degrees?
Three arms set 120 degrees apart is the smallest arrangement that keeps one arm blocking the lane while another is clear of the walking path. Two arms would need a 180-degree turn, sweeping the trailing arm through the user's path, and four arms would leave a gap too narrow for comfortable passage. The rotor head is also mounted at an angle, so the arms sweep upward and away as the person walks through.
What is the damper in a tripod turnstile for?
The damper is a hydraulic or friction unit on the rotor shaft that governs rotation speed. It stops the arms being spun violently however hard they are pushed and brings them to a controlled stop as the lock re-engages. It is also the part that wears: a turnstile that feels loose or notchy, or that slams at the end of each rotation, is usually reporting damper wear rather than a fault in the lock or the controller.
What is the difference between a mechanical, semi-automatic and fully automatic tripod turnstile?
A mechanical tripod has no electrical release and turns freely in the permitted direction, or is released by a coin, token or attendant lever. A semi-automatic tripod uses a solenoid or electromagnet to release the lock on a valid credential, and the user pushes the arm. A fully automatic tripod releases the lock in the same way, but a motor drives the rotation through the full 120 degrees.
What is a drop-arm tripod turnstile?
A drop-arm tripod holds its three arms on a latch rather than fixing them rigidly to the hub. On a fire alarm signal or a loss of power the latch releases and all three arms fall vertically, leaving the lane physically clear so a crowd can evacuate without turning the rotor. The arms are re-set by hand afterwards. It is a hardware variant that must be specified at purchase, not a setting applied later.
Do turnstiles in Dubai fall under SIRA?
Security systems and the companies that install them in Dubai operate within the framework of SIRA, the Security Industry Regulatory Agency, so equipment selection and installer engagement are a regulated matter rather than purely a commercial choice. What that means for a specific turnstile project depends on the site and the system type, and current requirements must be confirmed with the agency for that project. Nothing here should be read as a claim that any product or company holds any particular approval or registration.
Who decides whether a tripod turnstile drops its arms on a fire alarm in the UAE?
It is decided by the fire strategy for the route, agreed with the relevant civil defence authority for that emirate, at design stage. The two accepted answers are a drop-arm variant whose arms fall vertically to clear the lane, or a fail-locked rotor with a separate adjacent emergency gate released by the fire panel. Because the drop-arm option is a hardware variant that must be ordered, the decision has to be made before the equipment is purchased.
Why are tripod turnstiles used at labour accommodation and construction sites in the UAE?
Because they are robust and because they enforce one person per credential mechanically rather than detecting a violation after it happens. At accommodation entrances and site gates the record is used for occupancy, welfare and safety reporting, so the count has to hold up. The lane can also be tied to induction and permit status, so a worker whose permit has lapsed is stopped at the gate rather than identified in a report afterwards.
Does coastal humidity and salt affect a tripod turnstile?
Yes, and most UAE sites are close enough to the Gulf for it to be a design condition rather than a special case. Salt is hygroscopic and holds a conductive film against metal long after visible wetting has gone. The vulnerable points are base fixings, cut edges and welds inside the housing, arm-to-hub fixings, electrical terminations at the cool base of the enclosure, and the rotor shaft and damper seals. Material grade, sealing and a corrosion check at every visit are the answers.
Are tripod turnstiles wheelchair accessible?
No. No wheelchair, trolley, stretcher, pram or large item of luggage can pass through a tripod turnstile, and no configuration changes that. Any entrance built only from tripods needs an adjacent wide gate planned in from the first layout, and that gate must itself be controlled with its own reader, lock and log entry, one left on a manual latch or propped open at the peak becomes the weakest point in the whole line.
Can a tripod turnstile be used in both directions?
Yes. Most models carry separate release logic for each direction, so a lane can be set to control entry while leaving exit free, to control both directions, or to allow one direction only. If anti-passback, live occupancy counting or muster reporting is required, both directions must be controlled, because none of those works unless exits are actually read, and controlling both directions roughly doubles the passages each lane handles.
